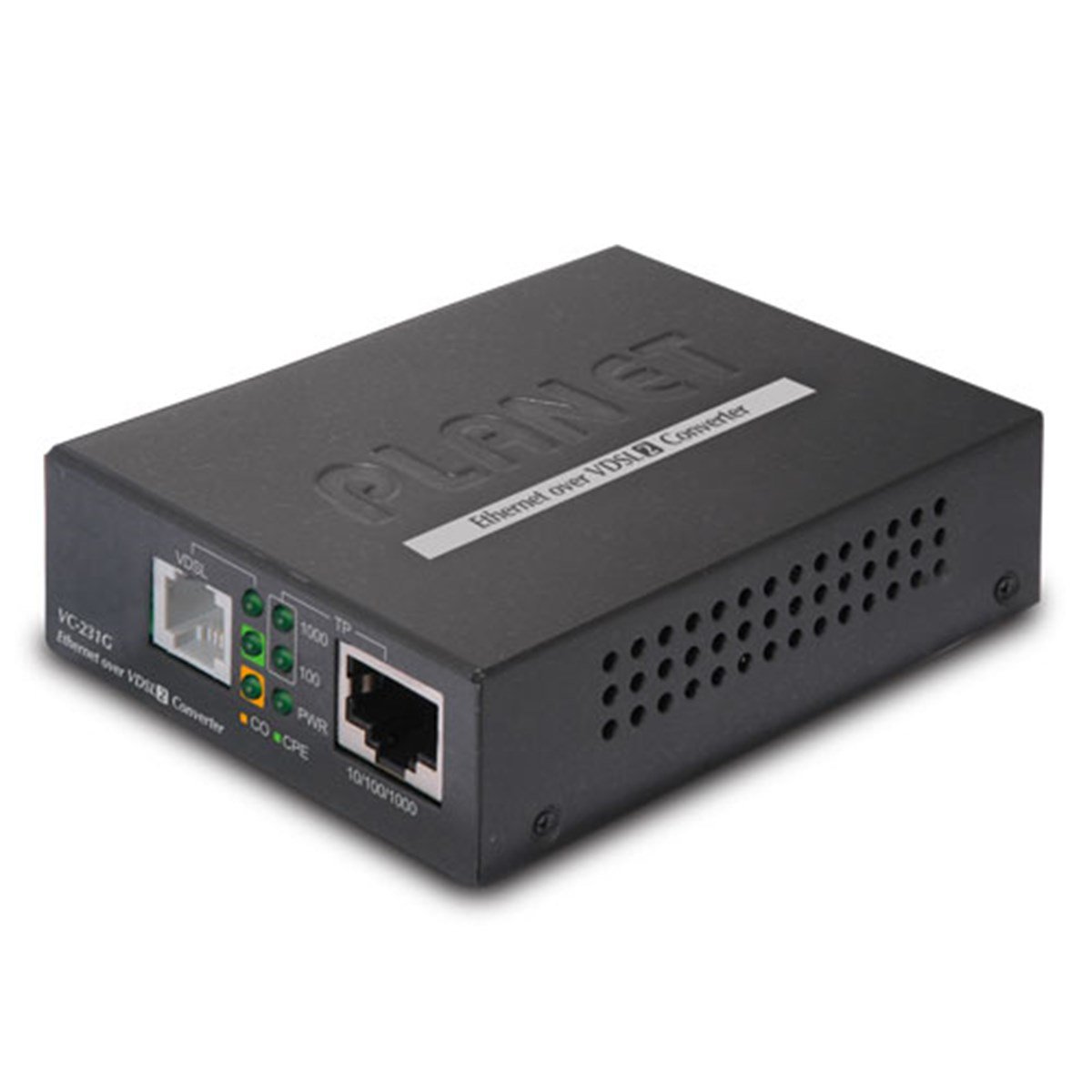

1-Port 10/100/1000T Ethernet'i VDSL2'ye Çevirici (30a profil, G.vectoring özellikli)<br> 1-Port 10/100/1000T Ethernet to VDSL2 Converter (30a profile w/ G.vectoring) (PL-VC-231G)

0,00
Marka : Planet
İndirim Oranı : %9 İndirim
Fiyat : 5.084,64 TL(KDV Dahil)
İndirimli : 4.622,40 TL(KDV Dahil)
Toplam Stok Adedi : 9

1-Port 10/100/1000T Ethernet'i VDSL2'ye Çevirici (30a profil, G.vectoring özellikli)<br> 1-Port 10/100/1000T Ethernet to VDSL2 Converter (30a profile w/ G.vectoring)

Donanım Özellikleri
LAN Port'ları 1 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port
VDSL Port 1 x VDSL2 RJ11 Dişi Telefon Jack'ı
Burgulu per telefon kablosu (AWG-24 ya da üstü) maksimum 1.4km
Telefon Port'u Hat ayırıcısı için POTS bağlantısı
Boyutlar (E x B x Y) 97 x 70 x 26 mm
Ağırlık 184g
Güç Gereksinimi DC 5V, 2A harici güç
LED Işıkları 1 güç: Yeşil Renk
1 1000BASE-T LNK/ACT: Yeşil Renk
1 100BASE-TX LNK/ACK: Yeşil Renk
1 VDSL: Yeşil Renk
1 CO: Yeşil Renk
1 CPE: Yeşil Renk
Şasi Metal
DIP Switch & İşlevsellik 4-position DIP switch
CO or CPE mod seçilebilir
Seçilebilir G.INP ve interleaved mod
Seçilebilir hedef Band plan
Seçilebilir hedef SNR mod
Switch Özellikleri
Switch Processing Scheme Store-and-Forward
Adres Tablosu 2K
Akış Kontrolü Back pressure half duplex için
IEEE 802.3x pause frame full duplex için
Maksimum Paket Boyutu 1522byte
Sistem Özellikleri
VDSL Uygunluk VDSL-DMT:
ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profil 17a/30a destekler)
ITU-T G.993.5 G.vectoring
ITU-T G.998
G.INP
ADSL Uygunluk ADSL2/2+ standardı:
  • ITU G.992.3 G.dmt.bis

  • ITU G.992.5 G.dmt.bisplus


  • Veri Hızı: Maks.24Mbp
Performans*(İndirme/Gönderme)
  • CO, Interleave, Asym, 8dB

  •  200M -> 190Mbps/87Mbps
     400M -> 161Mbps/60Mbps
     600M -> 118Mbps/36Mbps
     800M -> 59Mbps/24Mbps
     1000M -> 47Mbps/7Mbps
     1200M -> 39Mbps/4Mbps
     1400M -> 25Mbps/4Mbps

  • CO, Interleave, Sym, 8dB

  •  200M -> 147Mbps/139Mbps
     400M -> 112Mbps/110Mbps
     600M -> 75Mbps/73Mbps
     800M -> 44Mbps/44Mbps
     1000M -> 26Mbps/25Mbps
     1200M -> 24Mbps/13Mbps
     1400M -> 20Mbps/9Mbps

  • G.INP, ASym, 8dB

  •  200M -> 197Mbps/101Mbps
     400M -> 168Mbps/65Mbps
     600M -> 109Mbps/34Mbps
     800M -> 65Mbps/20Mbps
     1000M -> 53Mbps/7Mbps
     1200M -> 44Mbps/4Mbps
     1400M -> 28Mbps/4Mbps

  • G.INP, sym, 8dB

  •  200M -> 150Mbps/150Mbps
     400M -> 117Mbps/117Mbps
     600M -> 77Mbps/77Mbps
     800M -> 43Mbps/43Mbps
     1000M -> 29Mbps/28Mbps
     1200M -> 27Mbps/15Mbps
     1400M -> 22Mbps/10Mbps

  • CO, Interleave, Asym, 12dB

  •  200M -> 178Mbps/84Mbps
     400M -> 143Mbps/53Mbps
     600M -> 99Mbps/32Mbps
     800M -> 48Mbps/22Mbps
     1000M -> 41Mbps/5Mbps
     1200M -> 33Mbps/3Mbps
     1400M -> 23Mbps/3Mbps

  • CO, Interleave, Sym, 12dB

  •  200M -> 135Mbps/127Mbps
     400M -> 96Mbps/96Mbps
     600M -> 61Mbps/59Mbps
     800M -> 40Mbps/40Mbps
     1000M -> 23Mbps/18Mbps
     1200M -> 22Mbps/9Mbps
     1400M -> 16Mbps/7Mbps

  • G.INP, Asym, 12dB

  •  200M -> 185Mbps/89Mbps
     400M -> 148Mbps/54Mbps
     600M -> 95Mbps/32Mbps
     800M -> 58Mbps/14Mbps
     1000M -> 46Mbps/6Mbps
     1200M -> 37Mbps/3Mbps
     1400M -> 25Mbps/3Mbps

  • G.INP, Sym, 12dB

  •  200M -> 140Mbps/140Mbps
     400M -> 97Mbps/97Mbps
     600M -> 60Mbps/60Mbps
     800M -> 35Mbps/35Mbps
     1000M -> 26Mbps/21Mbps
     1200M -> 25Mbps/11Mbps
     1400M -> 18Mbps/8Mbps
Standartlara Uygunluk
Standartlara Uygunluk IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-duplex flow control
IEEE 802.1p Class of Service
ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profil 17a/30a destekler)
ITU-T G.993.5 G.Vectoring & G.INP
ITU-T G.998
