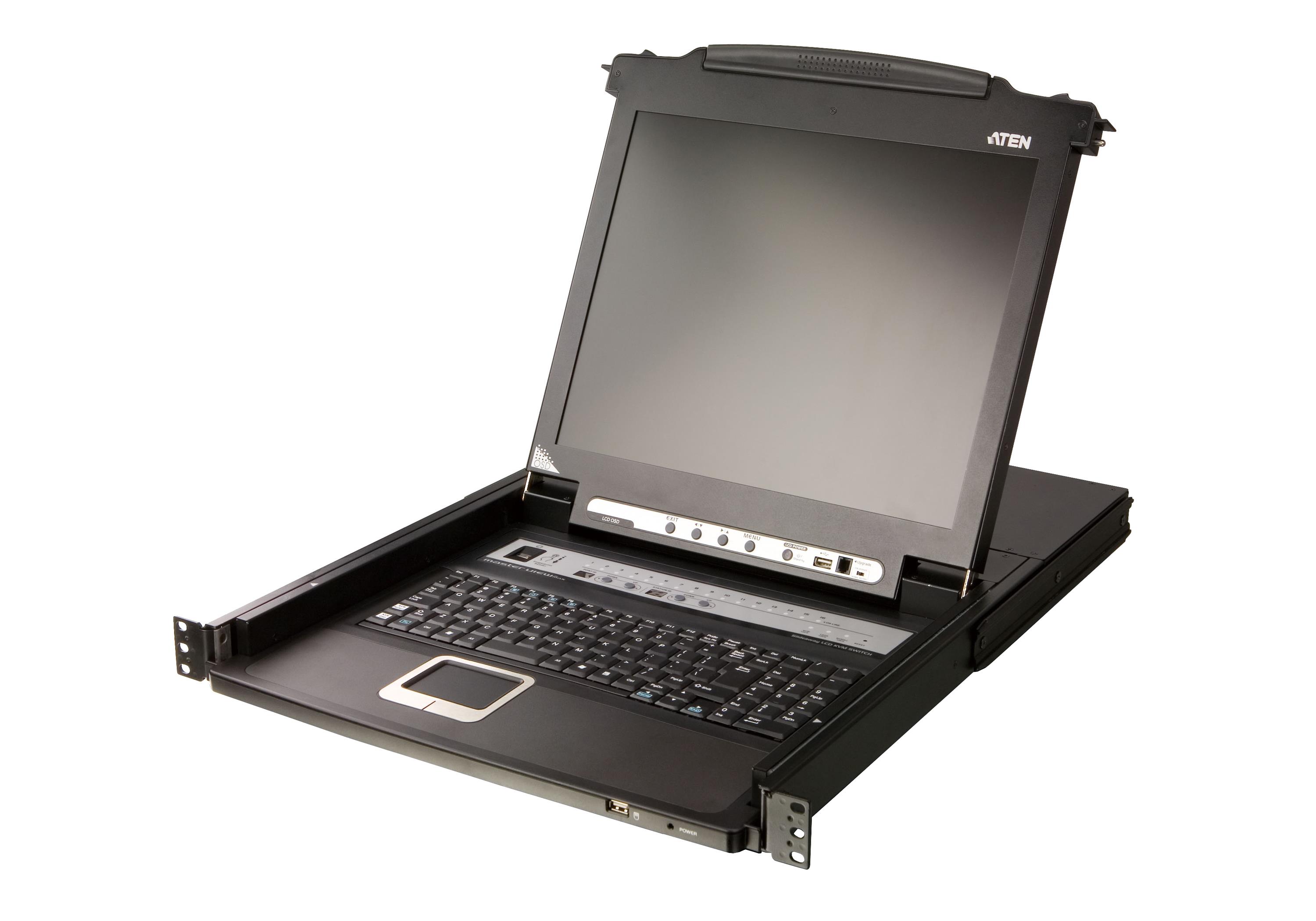

Function |
CL5716M |
CL5716MW |
CL5716N |
|
Computer Connections |
|
Direct |
16 |
16 |
16 |
|
Maximum |
512 (via Daisy-chain) |
512 (via Daisy-chain) |
512 (via Daisy-chain) |
|
Port Selection |
OSD, Hotkey, Pushbutton |
OSD, Hotkey, Pushbutton |
OSD, Hotkey, Pushbutton |
|
Connectors |
|
KVM Ports |
16 x SPHD Female (Yellow) |
16 x SPHD Female (Yellow) |
16 x SPHD Female (Yellow) |
|
Daisy Chain Ports |
1 x DB-25 Male |
1 x DB-25 Male |
1 x DB-25 Male |
|
Firmware Upgrade |
1 x RJ-11 Female |
1 x RJ-11 Female |
1 x RJ-11 Female |
|
Power |
1 x IEC 60320/C14 |
1 x IEC 60320/C14 |
1 x IEC 60320/C14 |
|
External Console Ports |
1 x SPHD Male (Yellow) |
1 x SPHD Male (Yellow) |
1 x SPHD Male (Yellow) |
|
External Mouse Port |
1 x USB Type A Female (Front) |
1 x USB Type A Female (Front) |
1 x USB Type A Female (Front) |
|
USB Port |
1 x USB Type A Female |
N/A |
1 x USB Type A Female |
|
Switches |
|
Port Selection |
2 x Pushbutton |
2 x Pushbutton |
2 x Pushbutton |
|
Station Selection |
2 x Pushbutton |
2 x Pushbutton |
2 x Pushbutton |
|
Reset |
1 x Semi-recessed Pushbutton |
1 x Semi-recessed Pushbutton |
1 x Semi-recessed Pushbutton |
|
Firmware Upgrade |
1 x Slide Switch |
1 x Slide Switch |
1 x Slide Switch |
|
Power |
1 x Rocker Switch |
1 x Rocker Switch |
1 x Rocker Switch |
|
LCD Control |
4 x Pushbutton |
4 x Pushbutton |
4 x Pushbutton |
|
LCD Power |
1 x LED Pushbutton |
1 x LED Pushbutton |
1 x LED Pushbutton |
|
LEDs |
|
Online |
16 (Orange) |
16 (Orange) |
16 (Orange) |
|
Port ID |
2 x 7-segment LED Display (Orange) |
2 x 7-segment LED Display (Orange) |
2 x 7-segment LED Display (Orange) |
|
Station ID |
2 x 7-segment LED Display (Orange) |
2 x 7-segment LED Display (Orange) |
2 x 7-segment LED Display (Orange) |
|
Power |
1 (Dark Green) |
1 (Dark Green) |
1 (Dark Green) |
|
Lock |
1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green) |
1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green) |
1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green) |
|
LED Illumination Light |
1 x LED Illumination Light |
1 x LED Illumination Light |
1 x LED Illumination Light |
|
Panel Spec |
|
LCD Module |
17" TFT-LCD |
17.3" TFT-LCD |
19" TFT-LCD |
|
Resolution |
1280 x 1024 @ 75 Hz |
1920 x 1080 @ 60 Hz |
1280 x 1024 @ 75 Hz |
|
Response time |
5 ms |
16 ms |
5 ms |
|
Viewing Angle |
170° (H), 160° (V) |
170° (H), 170° (V) |
170° (H), 160° (V) |
|
Pixel Pitch |
0.264 mm x 0.264 mm |
0.1989 mm x 0.1989 mm |
0.294 mm x 0.294 mm |
|
Support Color |
16.77M colors |
16.77M colors |
16.77M colors |
|
Contrast Ratio |
1000 : 1 |
800 : 1 |
1000 : 1 |
|
Luminance |
250 cd/m² |
250 cd/m² |
250 cd/m² |
|
Video |
|
Input Video Resolution |
up to 1920 × 1200 @ 60 Hz;
1280 × 1024 @ 75 Hz, DDC2B |
up to 1920 × 1200 @ 60 Hz (all resolution @ 60Hz only);
1920 × 1080 @ 60 Hz, DDC2B |
up to 1920 × 1200 @ 60 Hz;
1280 × 1024 @ 75 Hz, DDC2B |
|
Scan Interval |
1-255 seconds |
1-255 seconds |
1-255 seconds |
|
Emulation |
|
Keyboard / Mouse |
PS/2, USB |
PS/2, USB |
PS/2, USB |
|
Maximum Input Power Rating |
100-240V AC, 50/60Hz, 1A |
100-240V AC, 50/60Hz, 1A |
100-240V AC, 50/60Hz, 1A |
|
Power Consumption |
AC110V:24.7W:129BTU
AC220V:25.8W:134BTU |
AC110V:14.8W:80BTU
AC220V:15.6W:84BTU |
AC110V:26.9W:139BTU
AC220V:27.9W:144BTU |
|
Environmental |
|
Operating Temperature |
0-40°C |
0-40°C |
0-50°C |
|
Storage Temperature |
-20-60°C |
-20-60°C |
-20-60°C |
|
Humidity |
0-85% RH, Noncondensing |
0-85% RH, Noncondensing |
0-85% RH, Noncondensing |
|
Physical Properties |
|
Housing |
Metal + Plastic |
Metal + Plastic |
Metal + Plastic |
|
Rail Type |
Single Rail |
Single Rail |
Single Rail |
|
Weight |
13.59 kg ( 29.93 lb ) |
13.65 kg ( 30.07 lb ) |
13.65 kg ( 30.07 lb ) |
|
Dimensions (L x W x H) |
48.00 x 64.27 x 4.40 cm
(18.9 x 25.3 x 1.73 in.) |
48.00 x 68.92 x 4.40 cm
(18.9 x 27.13 x 1.73 in.) |
48.00 x 68.92 x 4.40 cm
(18.9 x 27.13 x 1.73 in.) |
|
Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
