Function |
CL3700NW |
CL3700NX |
|
Computer Connections |
|
Direct |
1 |
1 |
|
Console Selection |
Hotkey |
Hotkey |
|
Connectors |
|
KVM Ports |
1 x HDMI Female
1 x USB Type B Female |
1 x HDMI Female
1 x USB Type B Female |
|
Firmware Upgrade |
1 x 3.5mm Audio Jack Female (Black) |
1 x 3.5mm Audio Jack Female (Black) |
|
Power |
1 x IEC 60320/C14 |
1 x IEC 60320/C14 |
|
External Console Ports |
1 x HDMI Female
2 x USB Type A Female |
1 x HDMI Female
2 x USB Type A Female |
|
External Mouse / Peripheral |
1 x USB Type A Female (Front) |
1 x USB Type A Female (Front) |
|
Switches |
|
Reset |
1 x Semi-recessed Pushbutton |
1 x Semi-recessed Pushbutton |
|
Firmware Upgrade |
1 x Slide Switch |
1 x Slide Switch |
|
Power |
1 x Rocker Switch |
1 x Rocker Switch |
|
LCD Control |
4 x Pushbutton |
4 x Pushbutton |
|
LCD Power |
1 x LED Pushbutton |
1 x LED Pushbutton |
|
LEDs |
|
Power |
1 x KVM Console (Dark Green)
1 x LCD (Orange) |
1 x KVM Console (Dark Green)
1 x LCD (Orange) |
|
Lock |
1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green) |
1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green) |
|
LED Illumination Light |
1 x LED Illumination Light |
1 x LED Illumination Light |
|
Panel Spec |
|
LCD Module |

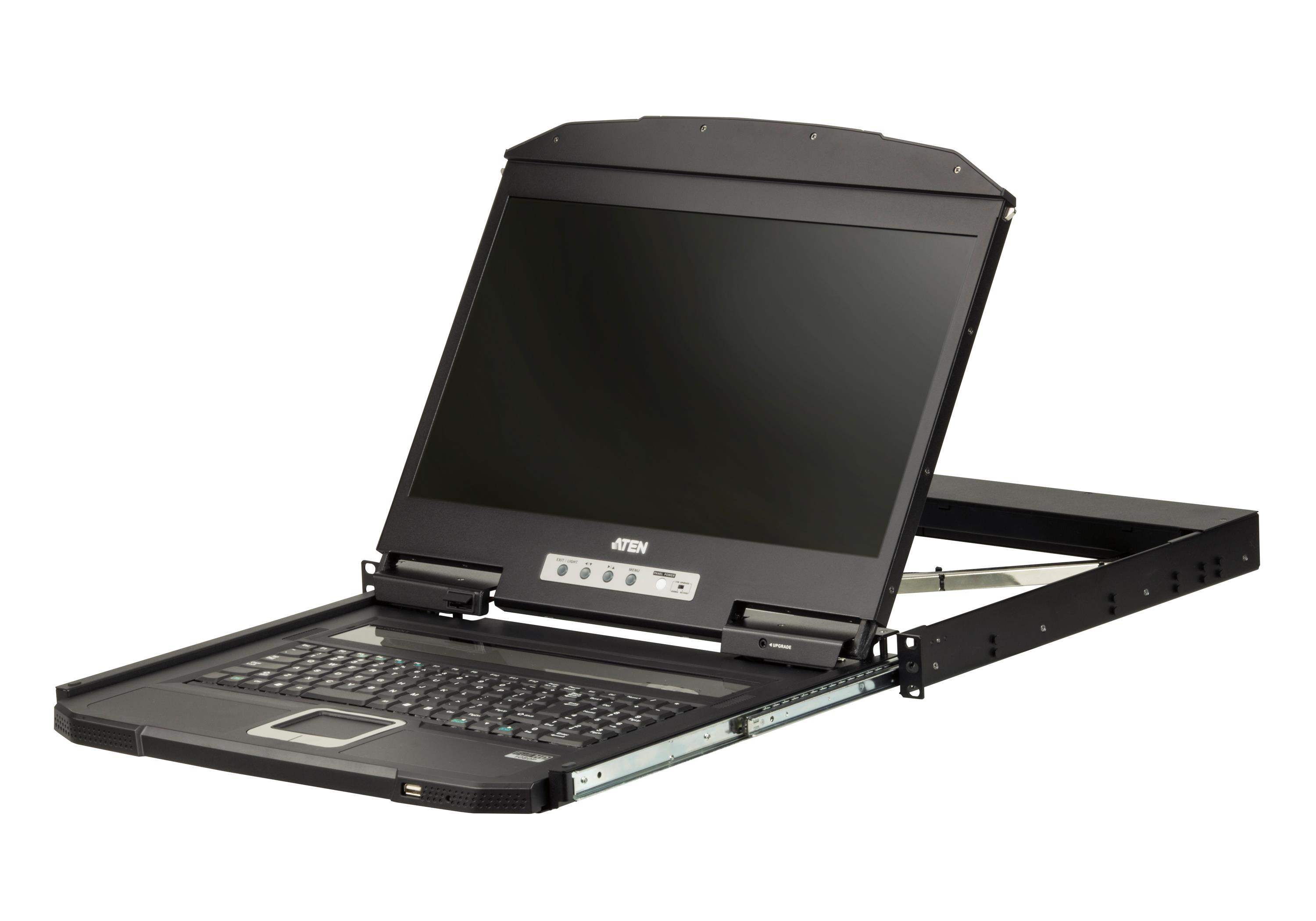

18.5" TFT-LCD |
18.5" TFT-LCD |
|
Resolution |
1920 x 1080 @ 60 Hz |
1366 x 768 @ 60Hz |
|
Response time |
20 ms |
5 ms |
|
Viewing Angle |
178° (H), 178° (V) |
170° (H), 160° (V) |
|
Pixel Pitch |
0.213 mm x 0.213 mm |
0.3 mm x 0.3 mm |
|
Support Color |
16.77M colors |
16.77M colors |
|
Contrast Ratio |
1000 : 1 |
1000 : 1 |
|
Luminance |
350 cd/m² |
250 cd/m² |
|
Video |
|
Input Video Resolution |
up to 1920 x 1200 @ 60Hz;
1920 x 1080 @ 60 Hz, DDC2B |
up to 1920 x 1200 @ 60Hz;
1366 x 768 @ 60 Hz, DDC2B |
|
Emulation |
|
Keyboard / Mouse |
USB |
USB |
|
Maximum Input Power Rating |
100–240 V AC, 50/60 Hz, 1 A |
100–240 V AC, 50/60 Hz, 1 A |
|
Power Consumption |
AC110V:23.3W:124BTU/h
AC220V:23.9W:127BTU/h
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
AC110V:13.6W:79BTU/h
AC220V:13.5W:78BTU/h
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
|
Environmental |
|
Operating Temperature |
0–40°C |
0–40°C |
|
Storage Temperature |
-20–60°C |
-20–60°C |
|
Humidity |
0–80% RH, Non-condensing |
0–80% RH, Non-condensing |
|
Physical Properties |
|
Housing |
Metal + Plastic |
Metal + Plastic |
|
Rail Type |
Single Rail |
Single Rail |
|
Weight |
9.01 kg ( 19.85 lb ) |
9.03 kg ( 19.89 lb ) |
|
Dimensions (L x W x H) |
48.06 x 47.70 x 4.28 cm
(18.92 x 18.78 x 1.69 in.) |
48.06 x 47.70 x 4.28 cm
(18.92 x 18.78 x 1.69 in.) |
|
Body Dimensions(L x W x H) |
44.92 x 43.00 x 4.28 cm |
44.92 x 43.00 x 4.28 cm |
|
Note |
Body Dimensions exclude I/O ports, handles, and mounting brackets. |
Body Dimensions exclude I/O ports, handles, and mounting brackets. |
|
Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
