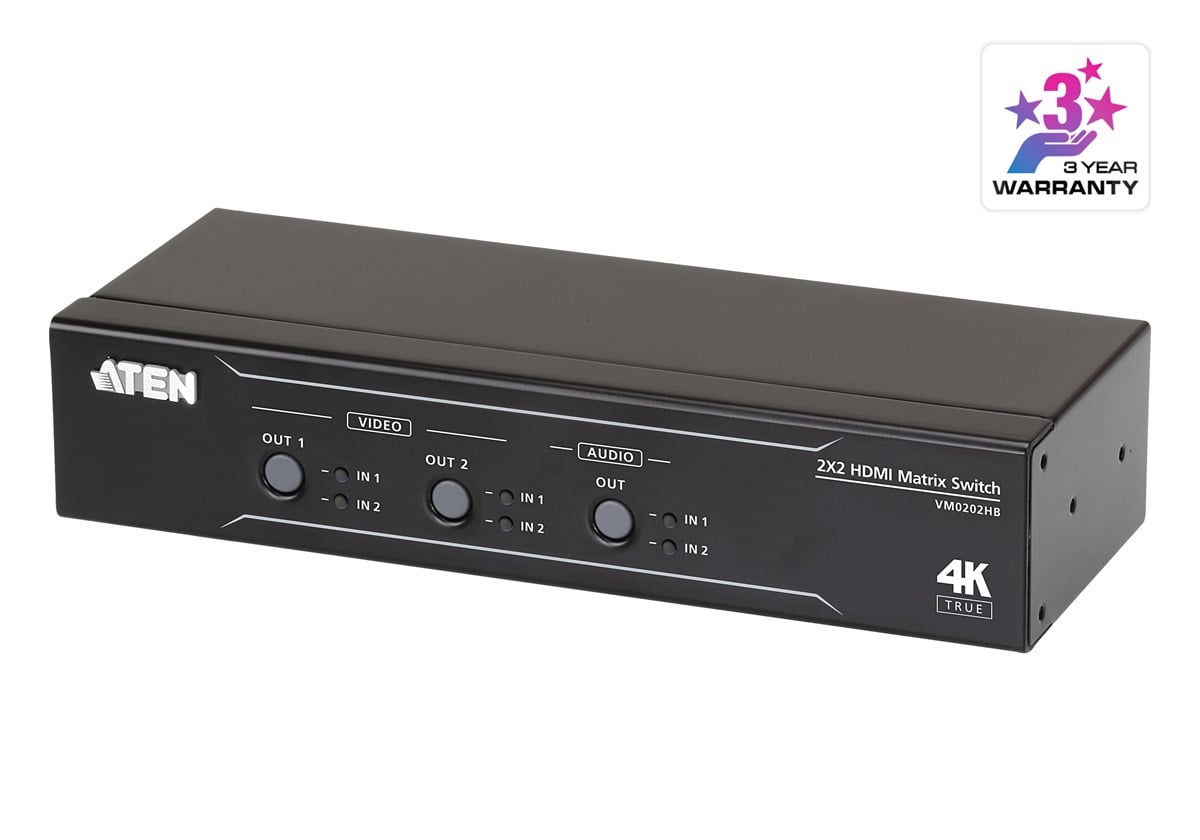

2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder

2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder (ATEN-VM0202HB)

0.0
Marka : Aten
Fiyat : 18.869,76 TL(KDV Dahil)
Toplam Stok Adedi : 0
2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver

  • Connects 2 HDMI sources to any 2 HDMI displays
  • Max. Data Rate 18.0 Gbps (6.0 Gbps Per Lane)
  • Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR
  • Audio de-embedder – HDMI audio can be extracted to stereo or Lineout audio
  • Supports Dolby True HD and DTS HD Master Audio
  • Auto switching – automatically detects and switches to a new source once connected (Default: off)
  • Multiple Control Methods – system management via front-panel pushbuttons, IR remote, and RS-232 serial control
  • Long-distance transmission up to 5 meters
  • HDMI (3D, 4K, Deep Color); HDCP 2.2 Compatible
  • Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
  • EDID Expert™ – selects optimum EDID settings for smooth power-up,high-quality display and use of the best video resolution across different screens
  • Supports ATEN’s Lock Pro™ HDMI cable lock for secure HDMI cable connections
  • All metal casing
  • Firmware upgradable
  • Rack mountable



Video Input
Interfaces 2 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 5.0 m
Video Output
Interfaces 2 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 5.0 m
Video
Max. Data Rate 18.0 Gbps (6.0 Gbps Per Lane)
Max. Pixel Clock 600 MHz
Compliance HDMI (3D, 4K, Deep Color)
HDCP 2.2 Compatible
Consumer Electronics Control (CEC)
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Distance Up to 5.0 m
Audio
Output 1x Mini Stereo Jack Female; 1x Captive Screw Connector, 3 pole
Control
USB 1 x Micro USB
F/W upgrade
RS-232 Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR 1 x Mini Stereo Jack Female (Black)
EDID Settings EDID Mode: Default / Port1 / Remix
Connectors
Power 1 x DC Jack (Black)
Power Consumption DC5V:2.47W:11BTU
Environmental
Operating Temperature 0-40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.60 kg ( 1.32 lb )
Dimensions (L x W x H) 20.00 x 7.60 x 4.20 cm
(7.87 x 2.99 x 1.65 in.)
