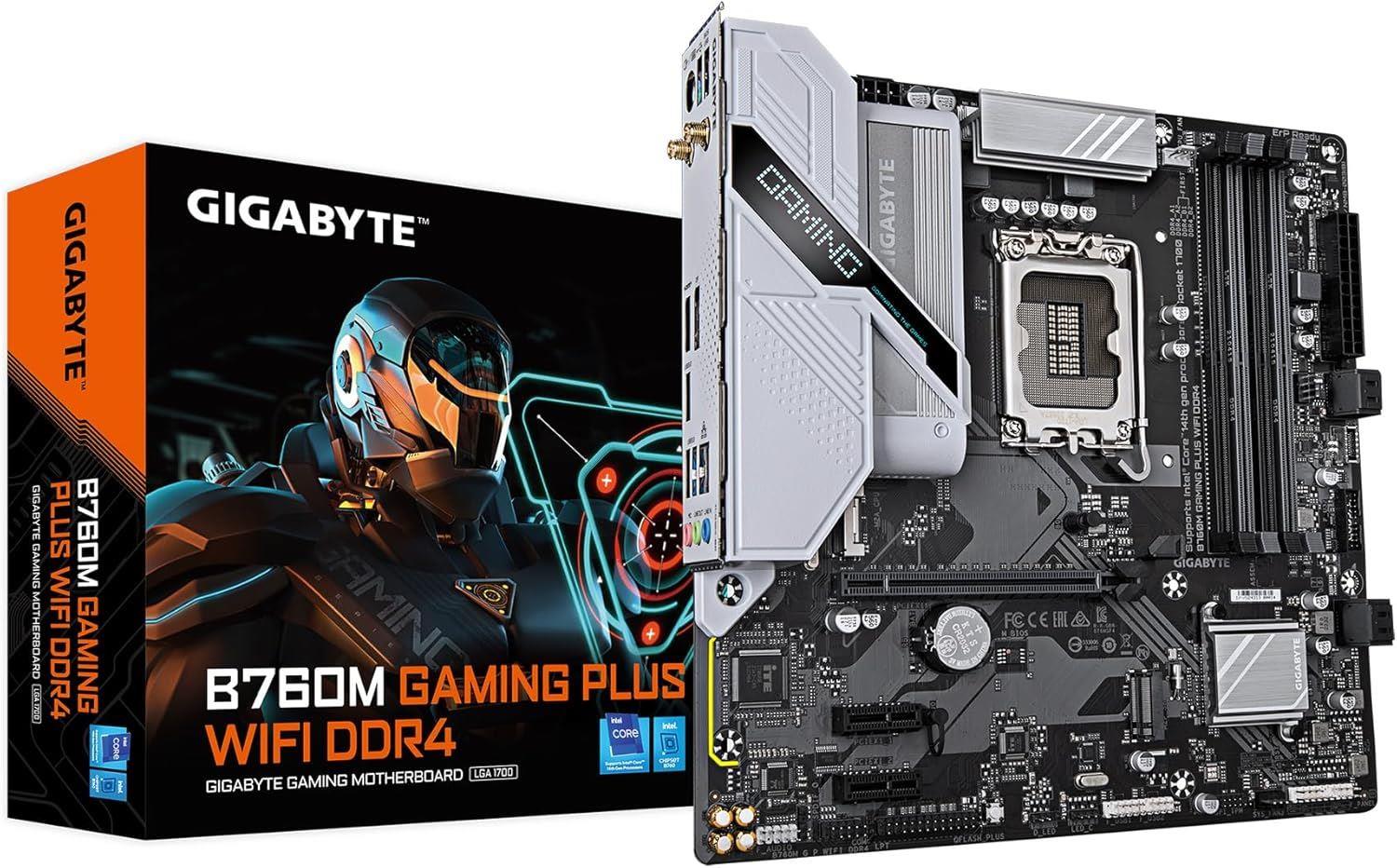

GIGABYTE GAMING PLUS B760M DDR4 HDMI DP PCIE 4.0 1700p mATX

GIGABYTE GAMING PLUS B760M DDR4 HDMI DP PCIE 4.0 1700p mATX (9723)

0.0
Marka : GIGABYTE
Fiyat : 8.099,91 TL(KDV Dahil)
Toplam Stok Adedi : 0
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver

Teknik Bilgiler

İşlemci Soket Tipi1700
Chip SetIntel B760
Ram Slot Sayısı4 Adet
Max Ram Desteği128GB
RAM TipiDDR4
Ram Frekans Hızı3466 MHz,3600 MHz,3666 MHz,3733 MHz,3800 MHz,3866 MHz,4133 MHz,4266 MHz,4300 MHz,4400 MHz,4500 MHz,4600 MHz,4700 Mhz,4933 MHz,5000 MHz,5133 MHz,5333 MHz,4000 MHz,4800 MHz,2133 MHz,2400 MHz,2666 MHz,2800 MHz,2933 MHz,3000 MHz,3100 MHz,3200 MHz,3300 MHz,3333 MHz,3400 MHz
İşlemci DesteğiIntel Pentium,Intel Core i9,Intel Core i7,Intel Core i5,Intel Core i3,Intel Celeron
Anakart BoyutuMicro ATX
USB 3.25 Adet
USB 3.1Yok
USB 3.0Yok
USB 2.08 Adet
eSataYok
BluetoothYok
PCI Express 4.0 x161 Adet
PCI Express 3.0 x16Yok
PCI Express 2.0 x16Yok
PCI Express x16Yok
PCI Express x11 Adet
PCI SlotYok
M.2 Slotu3 Adet
Sata 6Gb/s4 Adet
D-SubVar
DVIYok
HDMIVar
DP (Display Port)Var
Lan Hızı2.5 Gbit/ 1 Gbit/100 Mbit
Lan Çıkış Sayısı2 Adet
Wireless BağlantıYok
Ses Chip SetRealtek Audio CODEC
Ses Kanal Sayısı7.1 Kanal
Görüş Açısı (Yatay / Dikey)160/140
Satış Garanti Süresi (ay)24
EAN4719331862855

Detaylı Bilgiler

CPULGA1700 socket
Supports 14th / 13th / 12th Gen Intel® Core™, Pentium® Gold, Celeron®
L3 cache varies by CPU
(Refer to CPU Support List)
ChipsetIntel® B760 Express Chipset
MemoryDDR4 5333(O.C.) ~ 2133 MT/s support
4× DIMM, up to 128GB
Dual Channel
ECC/Non-ECC UDIMM support (ECC runs in non-ECC mode)
XMP support
Onboard GraphicsIntel® HD Graphics
HDMI: 4096×2160@60Hz (HDMI 2.1, HDCP 2.3)
DisplayPort: 4096×2304@60Hz (DP 1.2, HDCP 2.3)
Triple-display support
AudioRealtek® Audio CODEC
HD Audio, 2/4/5.1/7.1-channel
S/PDIF Out support
LANRealtek® GbE LAN (1Gbps)
WirelessRealtek® Wi-Fi 6 RTL8851BE
WiFi a/b/g/n/ac/ax (2.4/5GHz)
Bluetooth® 5.3
11ax 160MHz support
Expansion SlotsCPU:
- 1× PCIe x16 (PCIe 4.0 x16)

Chipset:
- 2× PCIe x1 (PCIe 3.0 x1)
StorageCPU:
- 1× M.2 (2280 PCIe 4.0 x4/x2) (M2A_CPU)

Chipset:
- 1× M.2 (2280 PCIe 4.0 x4/x2) (M2P_SB)
- 4× SATA 6Gb/s
RAID 0 / 1 / 5 / 10
USBUSB 3.2 Gen1:
- 1× Type-C (internal)
- 3× rear
- 2× internal

USB 2.0:
- 2× rear
- 4× internal (Hub)
Internal I/O24-pin ATX
8-pin CPU 12V
1× CPU fan
3× system fan
ARGB header
RGB header
2× M.2 sockets
4× SATA 6Gb/s
Front panel headers
USB Type-C header (USB 3.2 Gen1)
USB 3.2 Gen1 header
2× USB 2.0 headers
TPM header
Serial + Parallel header
S/PDIF Out header
Q-Flash Plus button
Reset jumper / Clear CMOS jumper
Back Panel2× USB 2.0
PS/2 combo port
2× SMA antenna connectors
1× DisplayPort
1× HDMI
3× USB 3.2 Gen1
1× RJ-45 LAN
3× audio jacks
I/O ControlleriTE® Controller Chip
H/W MonitoringVoltage / Temperature / Fan speed detection
Water flow detection
Fan fail warning
Fan speed control
BIOS128 Mbit flash
AMI UEFI BIOS
PnP 1.0a, DMI 2.7, ACPI 5.0
Unique FeaturesGIGABYTE Control Center (GCC)
Q-Flash
Q-Flash Plus
Bundled SoftwareNorton® Internet Security (OEM)
LAN Manager Software
Operating SystemWindows 11 64-bit
Windows 10 64-bit
Form FactorMicro-ATX — 24.4cm × 24.4cm
