| CPU | AMD Socket AM5, support for AMD Ryzen™ 9000/8000/7000 Series Processors
(Go to GIGABYTE's website for latest CPU support list) |
| Chipset | AMD X870E |
| Memory | Support for DDR5 8200(O.C)/8000(O.C)/7800(O.C)/7600(O.C)/7200(O.C)/7000(O.C)/6800(O.C)/6666(O.C)/6600(O.C)/6400(O.C)/6200(O.C)/6000(O.C)/5600(O.C)/5200/4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
Support for AMD EXPO™ and XMP memory modules |
| Onboard Graphics | Integrated AMD Radeon™ Graphics + ASMedia USB4® Controller:
- 2 x USB4® USB Type-C® ports (DisplayPort video, max 3840x2160@240Hz)
- 1 x HDMI port (max 4096x2160@60Hz, HDMI 2.1, HDCP 2.3, HDR)
- 1 x front HDMI port (max 1920x1080@30Hz, HDMI 1.4)
Support for up to quad-display simultaneously |
| Audio | Realtek® ALC1220 CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out, DSD audio support |
| LAN | Realtek® 2.5GbE LAN chip (2.5/1/0.1 Gbps) |
| Wireless Communication Module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0): WIFI a/b/g/n/ac/ax (2.4/5/6 GHz), BLUETOOTH 5.4, 11be 160MHz
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1/1.2): WIFI a/b/g/n/ac/ax (2.4/5/6 GHz), BLUETOOTH 5.4, 11be 160MHz
* Wi-Fi 7 requires Windows 11 SV3; 6 GHz band availability may depend on country regulations |
| Expansion Slots | CPU: 1 x PCIe x16 (Ryzen™ 9000/7000 PCIe 5.0 x16, M2B/M2C share bandwidth)
Chipset: 1 x PCIe x16 (PCIe 4.0 x4), 1 x PCIe x16 (PCIe 3.0 x4) |
| Storage Interface | 1 x M.2 (M2A_CPU, CPU, type 25110/22110/2580/2280, PCIe 5.0/4.0 x4/x2)
2 x M.2 (M2B_CPU, M2C_CPU, CPU, type 22110/2280, PCIe 5.0 x4/x2)
1 x M.2 (M2D_SB, Chipset, type 22110/2280, PCIe 4.0 x4/x2)
4 x SATA 6Gb/s
RAID 0/1/5/10 support (RAID5 only on Ryzen™ 9000) |
| USB | CPU+ASMedia USB4®: 2 x USB4® Type-C (back panel)
CPU: 1 x USB 3.2 Gen1 (back panel)
Chipset: 1 x USB Type-C Gen2x2 (internal), 2 x USB 3.2 Gen2 Type-A (red, back), 7 x USB 3.2 Gen1 (3 back, 4 internal), 8 x USB 2.0/1.1 (4 back, 4 internal) |
| Internal I/O Connectors | 1 x 24-pin ATX, 2 x 8-pin ATX 12V, CPU/system fan headers, water cooling pump headers, 3 x system fan headers, 3 x ARGB Gen2 LED, 1 x RGB LED, 4 x M.2 connectors, 4 x SATA 6Gb/s, front panel headers, USB Type-C Gen2x2 header, USB 3.2 Gen1 headers, USB 2.0/1.1 headers, TPM header, HDMI port, power/reset buttons, reset/Clear CMOS jumpers |

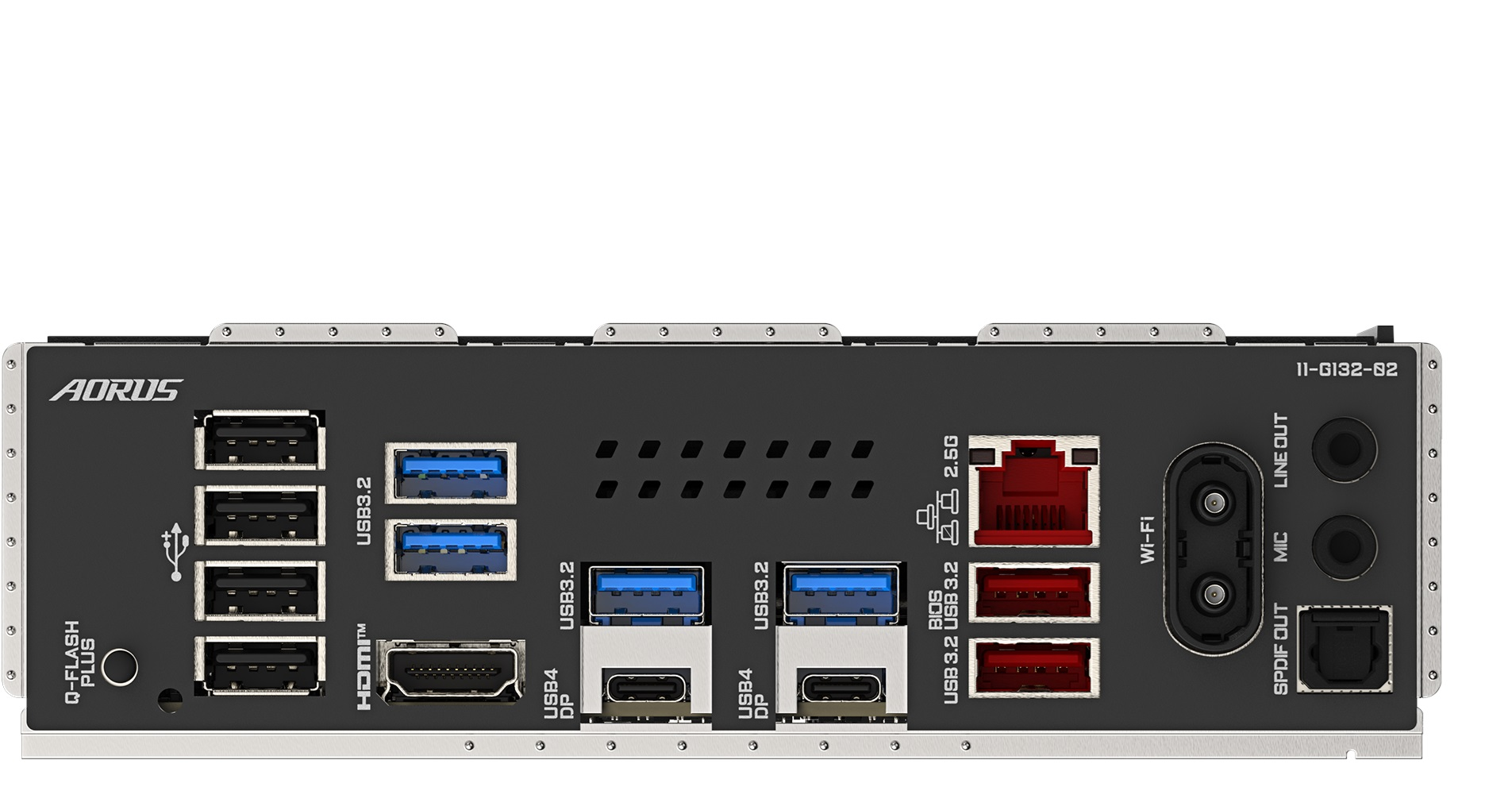

| Back Panel Connectors | 1 x Q-Flash Plus button, 4 x USB 2.0/1.1, 4 x USB 3.2 Gen1, 1 x HDMI, 2 x USB4® Type-C (DisplayPort), 1 x RJ-45, 2 x USB 3.2 Gen2 Type-A (red), 2 x antenna (2T2R), 2 x audio jacks, 1 x optical S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow, Fan fail warning, Fan speed control*, Noise detection |
| BIOS | 256 Mbit flash, licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software |
| Operating System | Windows 11 64-bit |
| Form Factor | ATX; 30.5cm x 24.4cm |
