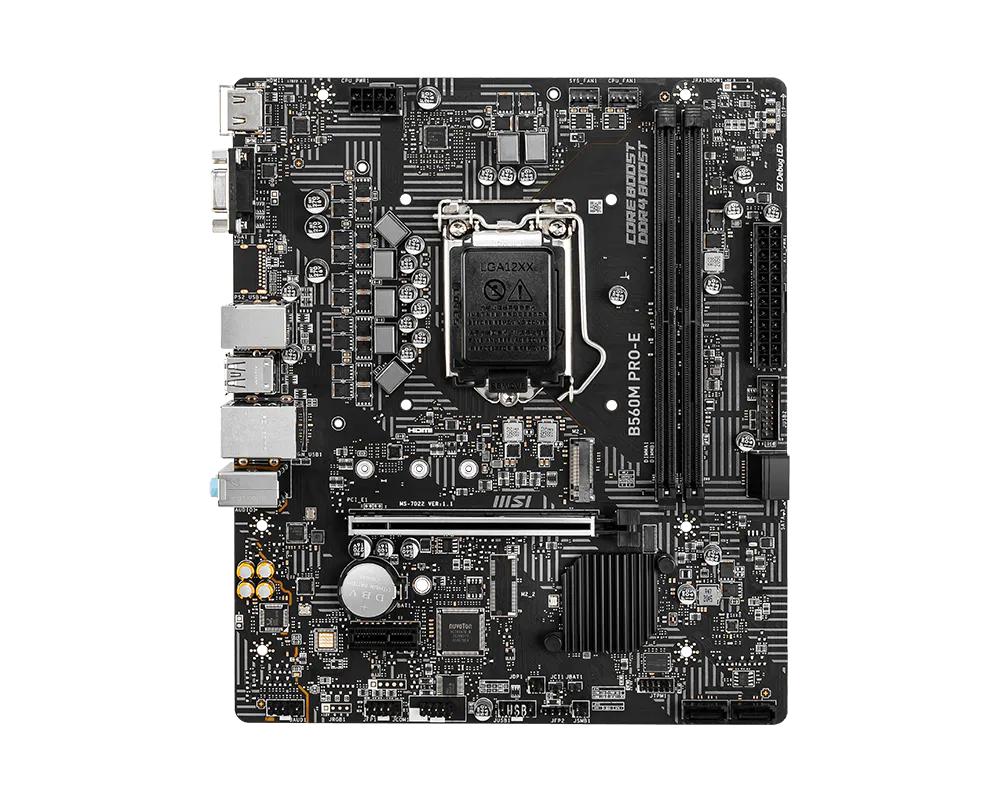

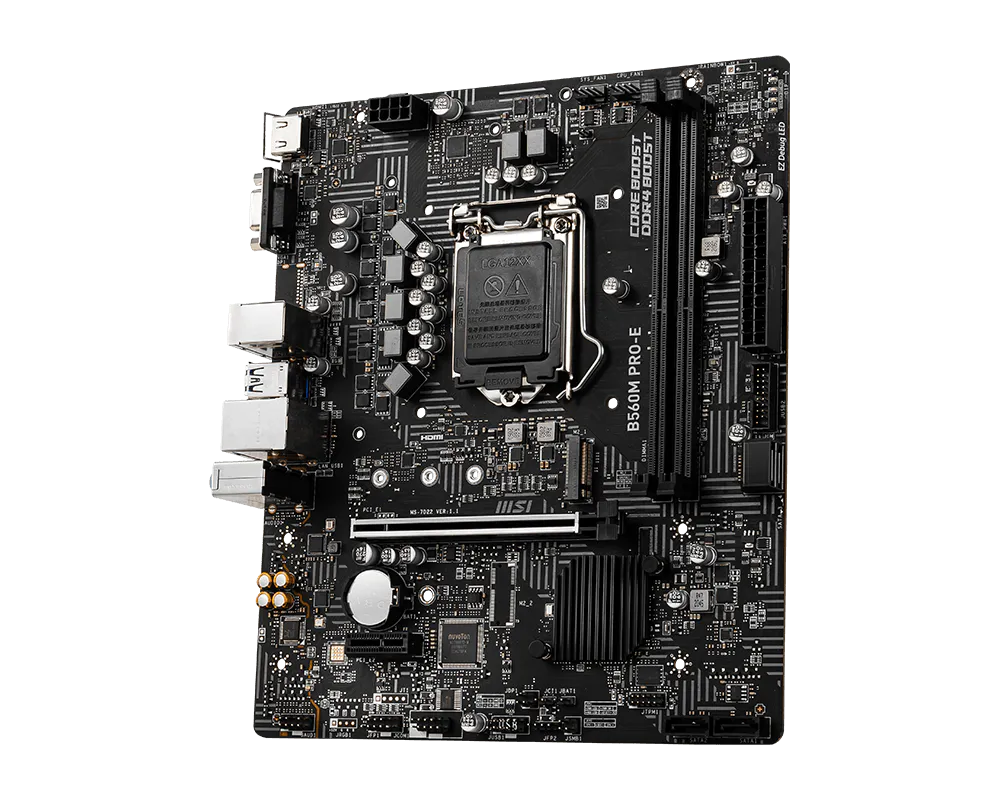

MSI B560M PRO-E DDR4 HDMI PCIe 16X v4.0 1200p v2 mATX (11368)

CPU

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core ™ Processors, Pentium® Gold and Celeron® Processors1

Processor socket LGA1200

1. Please go to intel.com for compatibility information.

Chipset

Intel® B560 chipset

Memory

• 2x DDR4 memory slots, support up to 64GB1
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
• Max overclocking frequency:
  • 1DPC 1R Max speed up to 4800 MHz
  • 1DPC 2R Max speed up to 4600+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

1. Please refer to www.msi.com for more information on compatible memory

See supported memory

Expansion Slot

• 1x PCIe x16 slot (From CPU)
  • Support up to PCIe 4.0 for 11th Gen Intel® CPU
  • Support up to PCIe 3.0 for 10th Gen Intel® CPU
• 1x PCIe 3.0 x1 slot (From PCH)

Onboard Graphics

• 1x HDMI™ 2.0b with HDR port, supports a maximum resolution of 4K 60Hz12
• 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz1

1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

Audio

Realtek® ALC892/ ALC897 Codec

• 7.1-Channel High Definition Audio

LAN

1x Intel® I219V 1Gbps LAN controller

Storage

Intel® B560 Chipset

• 4x SATA 6Gb/s ports (From B560 Chipset)
• 1x M.2 slot (Key M)
  • M2_1 slot (From B560 Chipset)
    • Supports up to PCIe 3.0 x4
    • Supports SATA 6Gb/s1
    • Supports 2242/ 2260/ 2280 storage devices

1. SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

USB

Intel® B560 Chipset

• 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
• 6x USB 2.0 ports (4 Type-A ports on the back panel,2 ports available through the internal USB 2.0 connectors)

Form Factor

• mATX Form Factor
• 9.29 in. x 7.95 in. (23.6 cm x 20.2 cm)

BIOS Features

• 1x 256 Mb flash
• UEFI AMI BIOS
• ACPI 6.2, SMBIOS 3.0
• Multi-language

Internal connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Serial port connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector

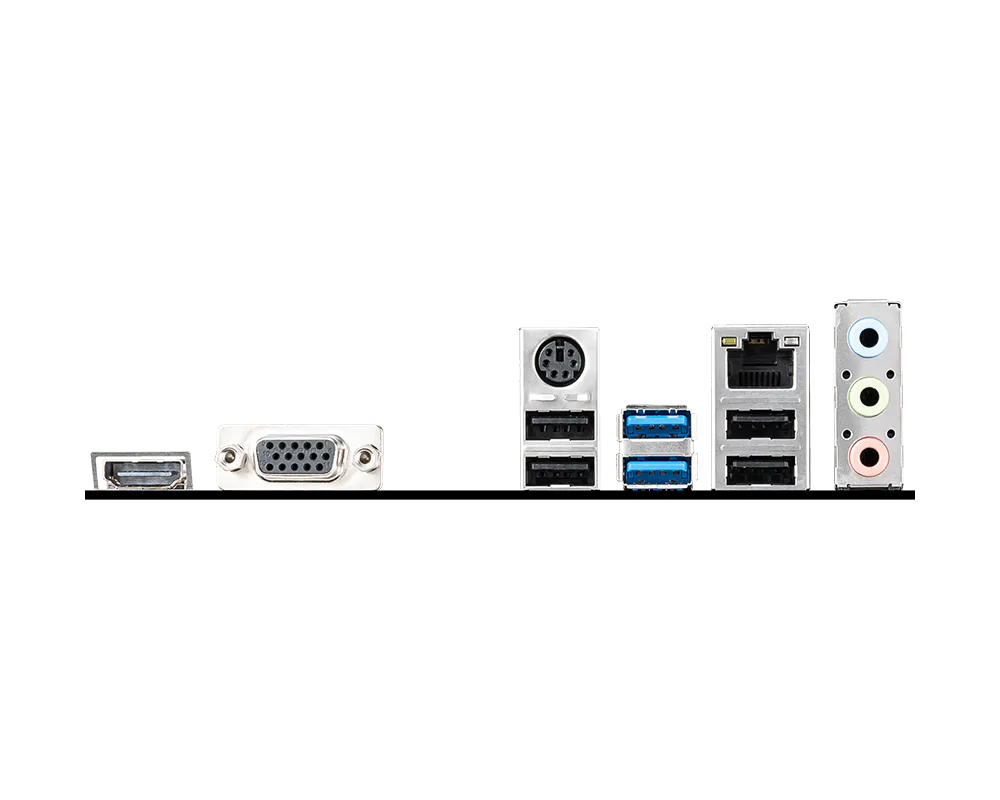

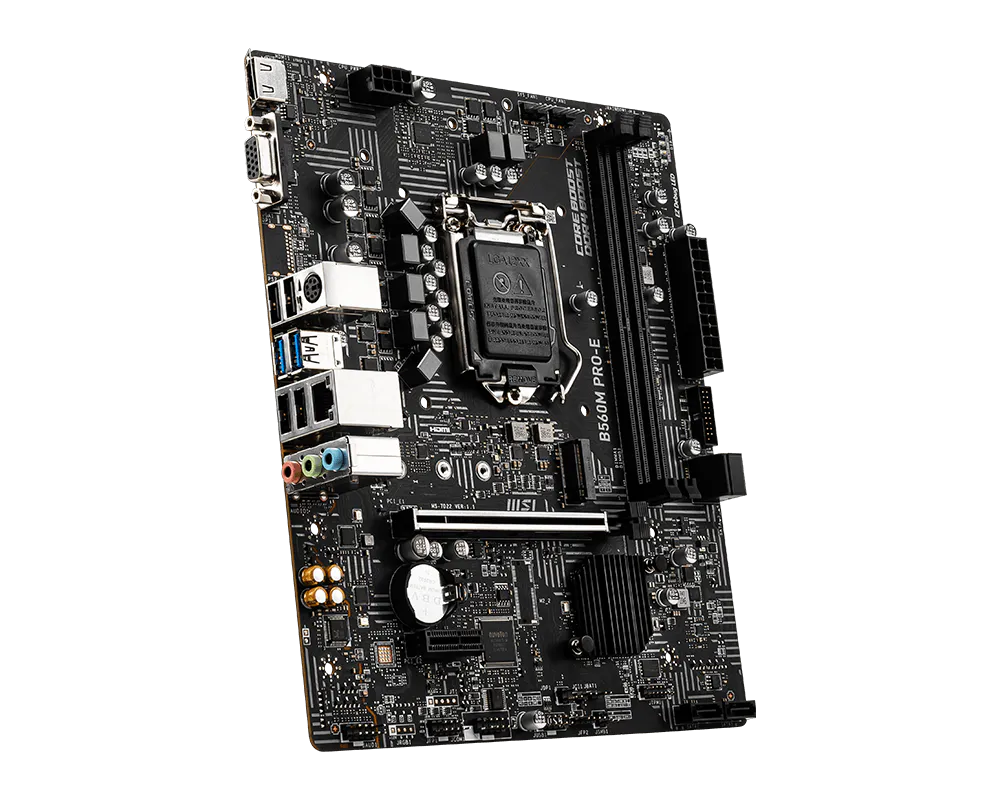

Back panel Connectors

1. HDMI™
2. VGA
3. Mouse / Keyboard
4. LAN port
5. Audio connector
6. USB 2.0
7. USB 3.2 Gen 1 5Gbps Type-A
8. USB 2.0

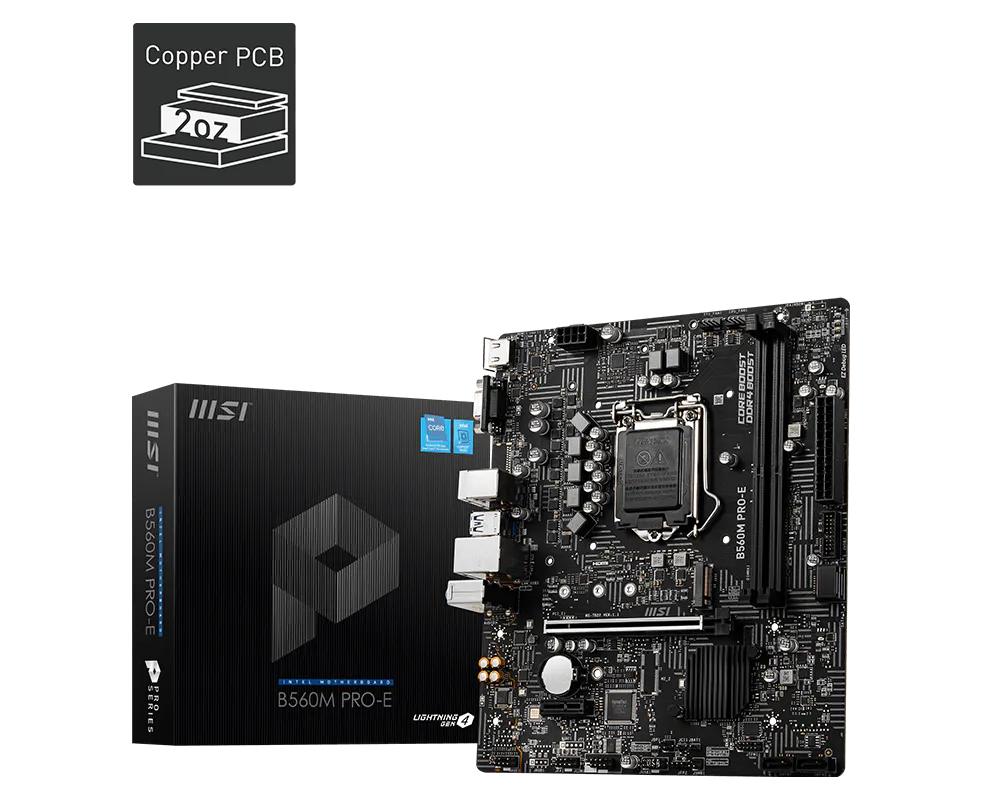

Box content
