Model
RG-NBS3200-24GT4XS
RG-NBS3200-48GT4XS
RG-NBS3200-24SFP/8GT4XS
RG-NBS3200-24GT4XS-P

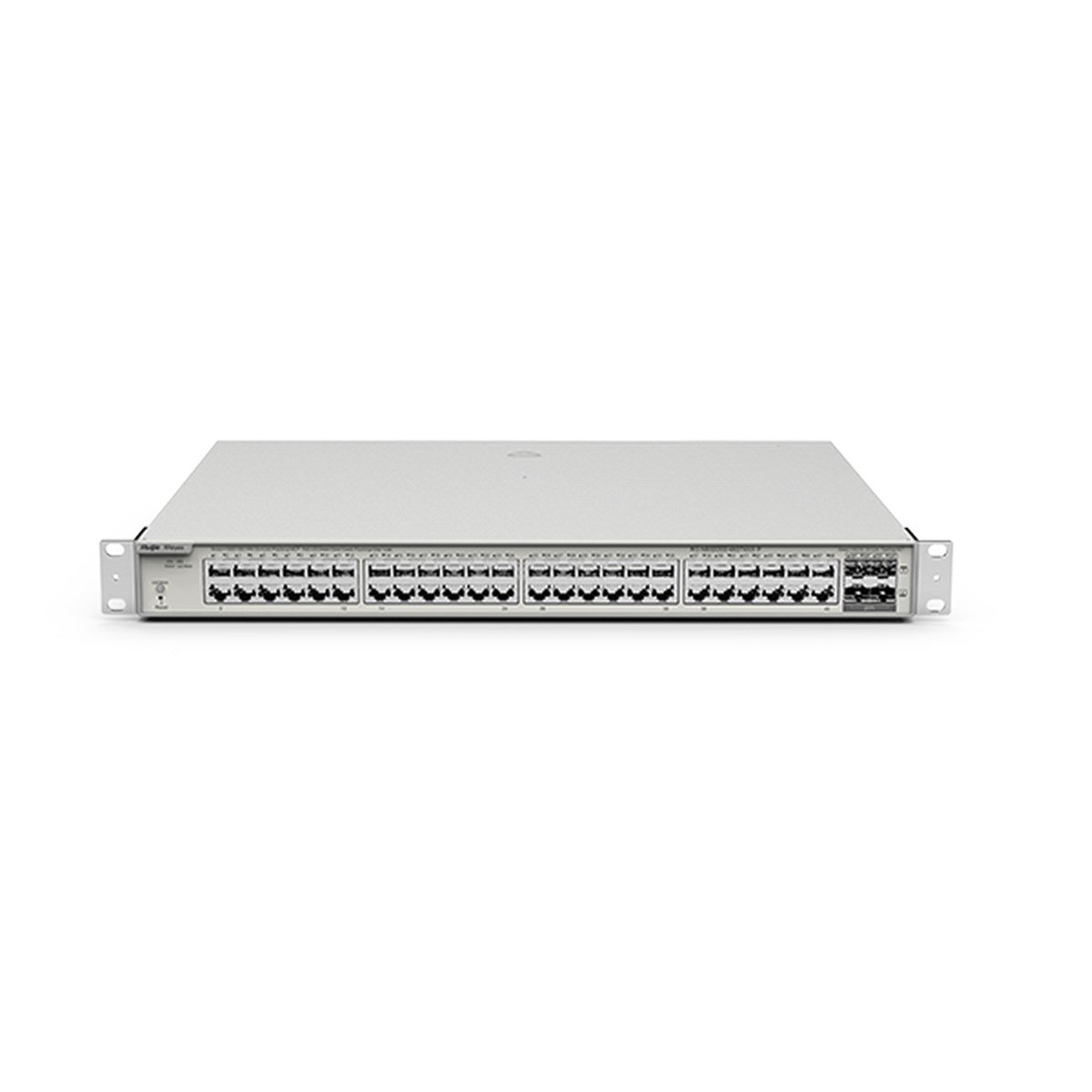

RG-NBS3200-48GT4XS-P
Fixed ports
24 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports, fixed single AC power supply
48 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports, fixed single AC power supply
24 SFP ports (SFP: 100/1000M ports), 8 combo 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports
24 10/100/1000Base-T ports (802.3 af/at compliant), 4 SFP+ 10GBase-X ports
48 10/100/1000Base-T ports (support PoE and PoE+), 4 SFP+ 10GBase-X ports
Switching capacity
336Gbps
Packet forwarding rate
96Mpps
132Mpps
96Mpp
RG-NBS3200-24GT4XS-P 96Mpps
MAC address
Support static MAC address, MAC address filtering
MAC address table size
16K
Number of VLANs
4094
Link aggregation
Support
Port mirroring
Many-to-one mirroring
Spanning tree
STP, RSTP
LLDP
IP routing
N/A
ACL
IP standard ACL
MAC extended ACL
IP extended ACL
Port ACL for Layer 2 ports (physical port / AP)
QoS
Port-based speed limit (ingress/egress)
Security
Port protection
Hardware CPP
Management
Web management, Ruijie Cloud or Ruijie Cloud app management
DHCP
DHCP snooping
EEE
Physical specifications
Dimensions
440x207.5x43.6mm
440×267.5×43.6mm
440x357.6x43.6mm
PoE
24/48 Base-T ports (support PoE and PoE+)
Maximum PoE / PoE+ output power per switch: 370W
Maximum output power per port: 30W
Temperature
Operating temperature: 0 ℃ ~ 50 ℃
Storage temperature: -40 ℃ ~ 70 ℃
Humidity
Operating humidity: 10% ~ 90% RH
Storage humidity: 5% ~ 90% RH
