Model
RG-NBS5200-24GT4XS

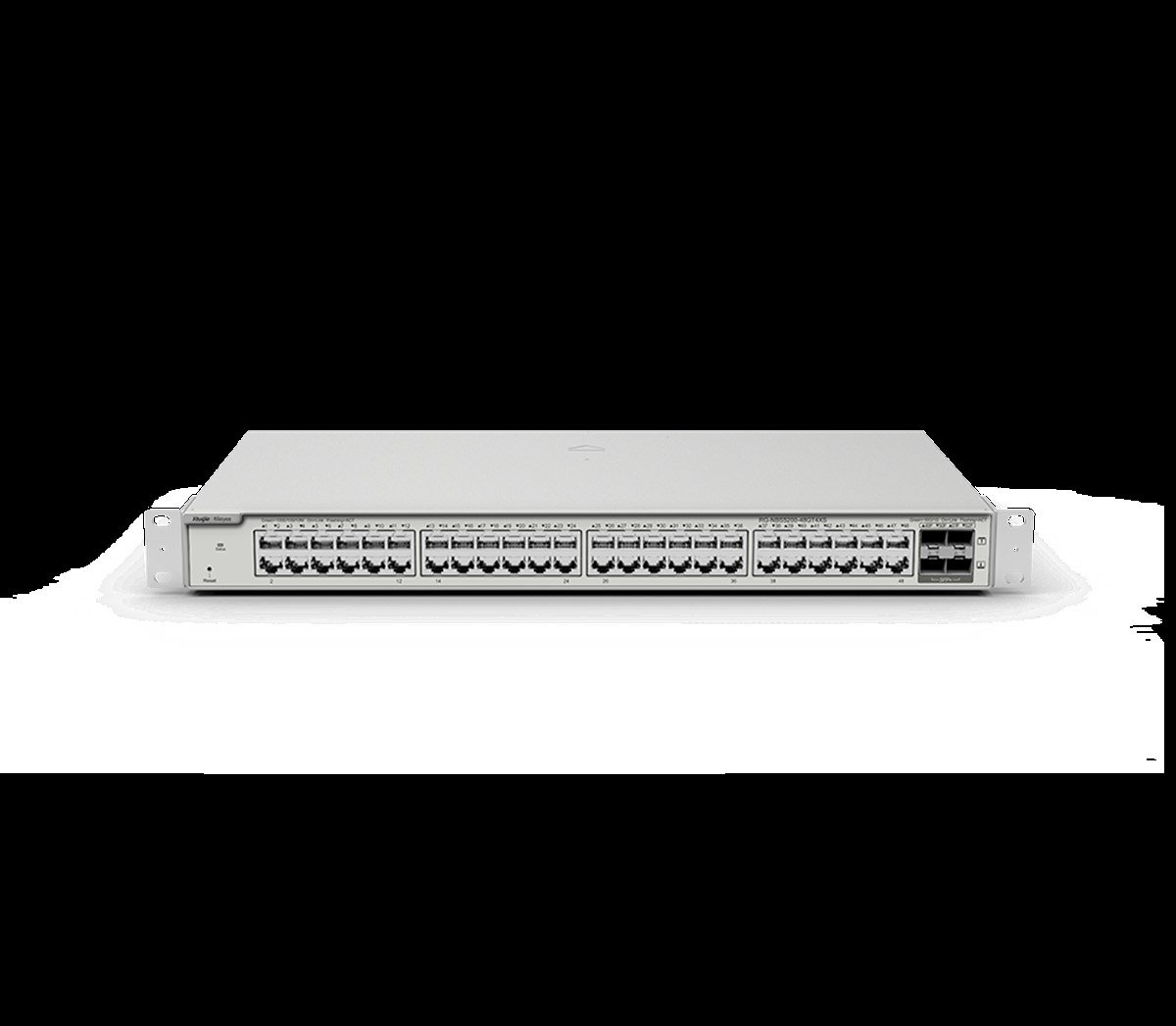

RG-NBS5200-48GT4XS
RG-NBS5200-24SFP/8GT4XS
RG-NBS5100-24GT4SFP
RG-NBS5100-48GT4SFP
Fixed ports
24 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports, fixed single AC power supply
48 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports, fixed single AC power supply
24 SFP ports (SFP: 100/1000M ports), 8 combo 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports
24 10/100/1000Base-T ports, 4 SFP 1000Base-X ports, fixed single AC power supply
48 10/100/1000Base-T ports, 4 SFP 1000Base-X ports, fixed single AC power supply
Switching capacity
336Gbps
Packet forwarding rate
108Mpps
144Mpps
51Mpps
87Mpps
MAC address
Support static MAC address, MAC address filtering
MAC address table size
16K
Number of VLANs
4094
Layer 3 aggregation ports
16
Link aggregation
Support
Port mirroring
Many-to-one mirroring
Spanning tree
STP, RSTP
LLDP
IP routing
Support static routing
ACL
IP standard ACL
MAC extended ACL
IP extended ACL
Port ACL for Layer 2 ports (physical port / AP)
QoS
Port-based speed limit (ingress/egress)
Security
Port protection
Hardware CPP
Management
Web management, Ruijie Cloud platform or Ruijie Cloud app management
DHCP
DHCP snooping
EEE
Physical specifications
Dimensions
440x207.5x43.6mm
440×267.5×43.6mm
Temperature
Operating temperature: 0 ℃ ~ 50 ℃
Storage temperature: -40 ℃ ~ 70 ℃
Humidity
Operating humidity: 10% ~ 90% RH
Storage humidity: 5% ~ 90% RH
