| Standards and Protocols | Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz |
|---|
| WiFi Speeds | AX1500
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11n) |
|---|
| WiFi Range | 3 Bedroom Houses4× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage |
|---|
| WiFi Kapasitesi | HighDual-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
4 Streams
Connect your devices to more bandwidth |
|---|
| Working Modes | Router Mode
Access Point Mode |
|---|
| GÜVENLİK | |
|---|
| Network Security | SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway |
|---|
| Guest Network | 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
|---|
| VPN Server | OpenVPN
PPTP |
|---|
| WiFi Encryption | WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x) |
|---|
| HARDWARE | |
|---|
| Processor | 1.5 GHz Triple-Core CPU |
|---|

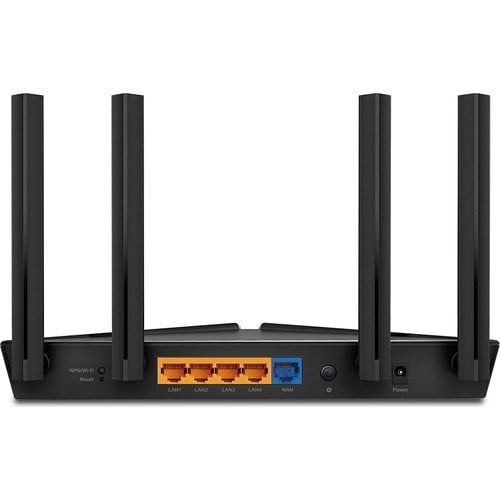

| Ethernet Ports | 1× Gigabit WAN Port
4× Gigabit LAN Ports |
|---|
| Butonlar | WPS/Wi-Fi Button
Power On/Off Button
LED On/Off Button
Reset Button |
|---|
| Power | 12 V ⎓ 1.5 A |
|---|
| SOFTWARE | |
|---|
| Protocols | IPv4
IPv6 |
|---|
| OneMesh™ | This product now supports Easymesh. |
|---|
| EasyMesh | Mesh networking creates smooth, fast, stable roaming. Archer AX10 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.
Learn More> |
|---|
| Parental Controls | URL Filtering
Time Controls |
|---|
| WAN Types | Dynamic IP
Static IP
PPPoE
PPTP
L2TP |
|---|
| Quality of Service | QoS by Device |
|---|
| Cloud Service | Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS |
|---|
| NAT Forwarding | Port Forwarding
Port Triggering
DMZ
UPnP |
|---|
| IPTV | IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN |
|---|
| DHCP | Address Reservation
DHCP Client List
Server |
|---|
| DDNS | TP-Link
NO-IP
DynDNS |
|---|
| Management Features | Tether App
Webpage
Check Web Emulator> |
|---|
| OTHER | |
|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access) |
|---|
| Certifications | FCC, CE, RoHS |
|---|
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
| TEST DATA | |
|---|
| WiFi Transmission Power | CE:
<20dBm(2.4 GHz)
<23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
|---|
| WiFi Reception Sensitivity | 5 GHz:
11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm
11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm
11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm
11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm
11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm
2.4 GHz:
11g 6Mbps:-91dBm, 11a 54Mbps:-74dBm
11n HT20_MCS0:-90dBm, 11n HT20_MCS7:-73dBm
11n HT40_MCS0:-88dBm, 11n HT40_MCS7:-70dBm |
|---|
| PHYSICAL | |
|---|
| Dimensions (W×D×H) | 10.2 × 5.3 ×1.5 in
(260.2 × 135.0 × 38.6 mm) |
|---|

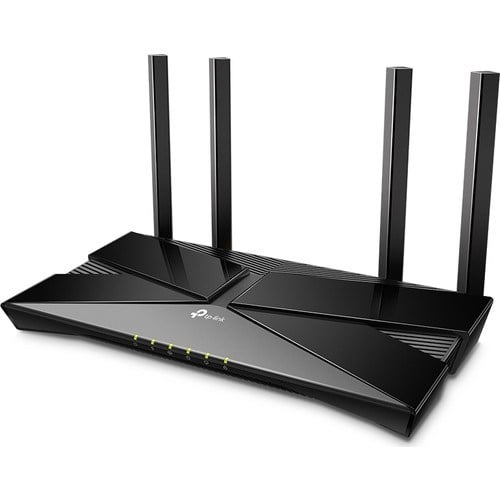

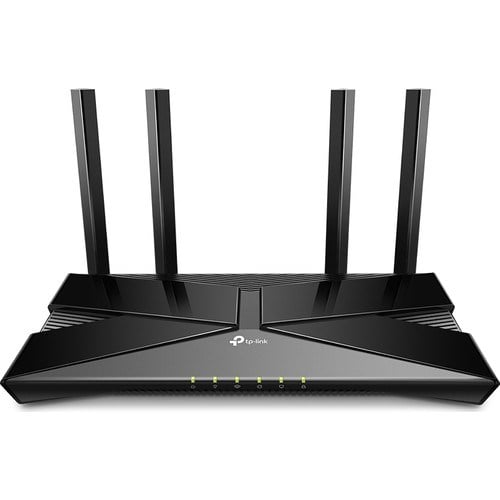

| Package Content | Wi-Fi Router Archer AX10
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
|---|
