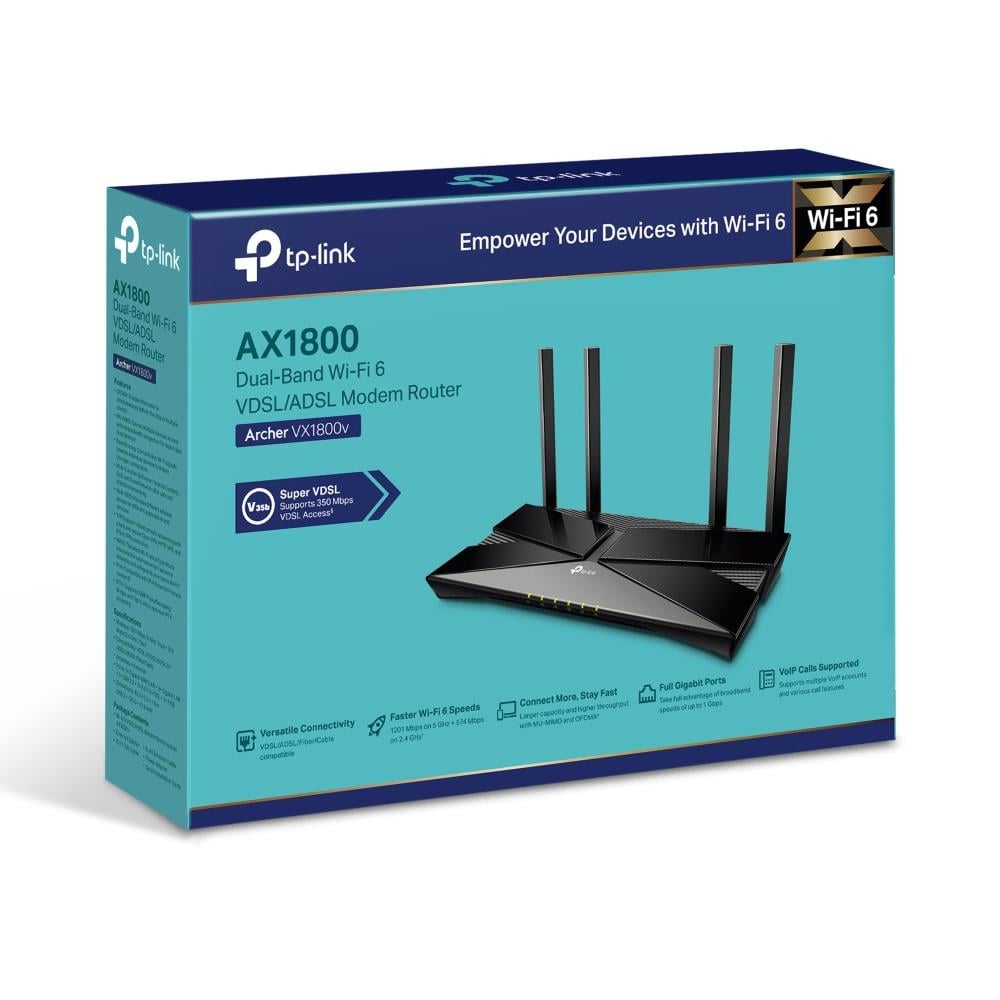

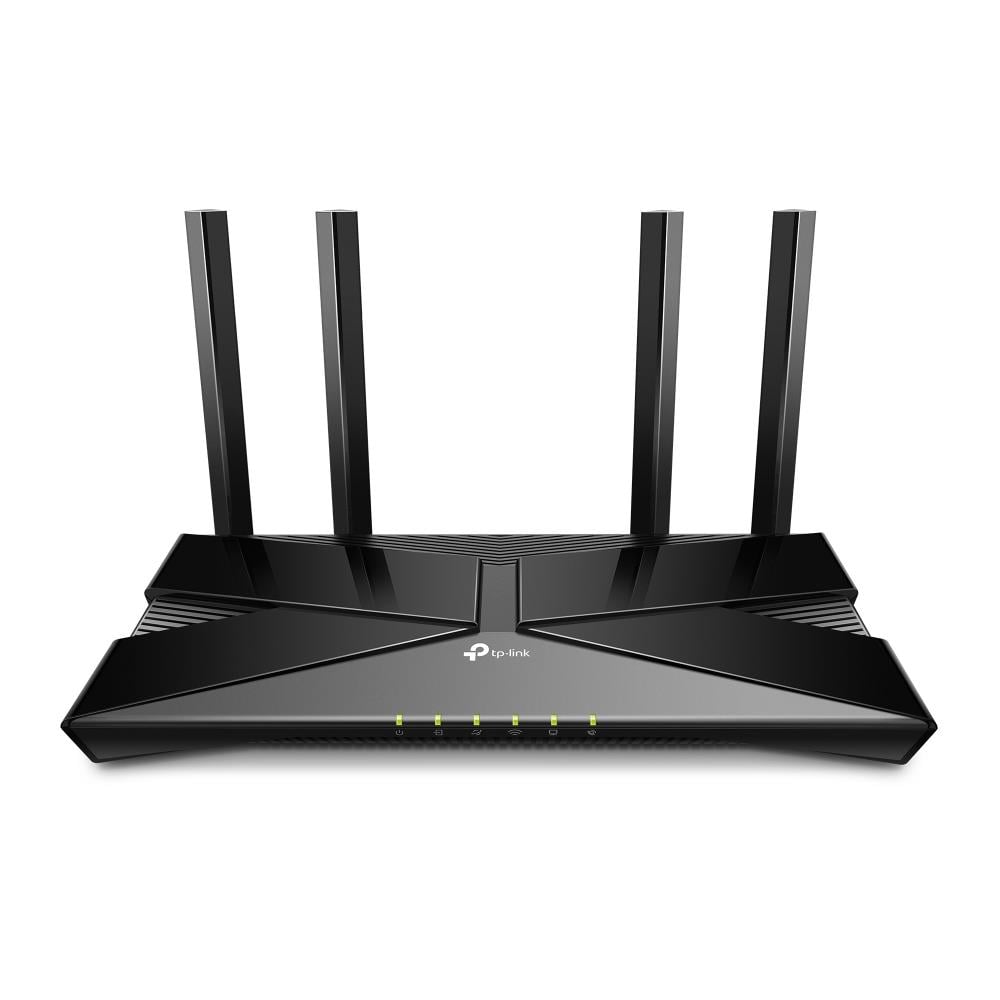

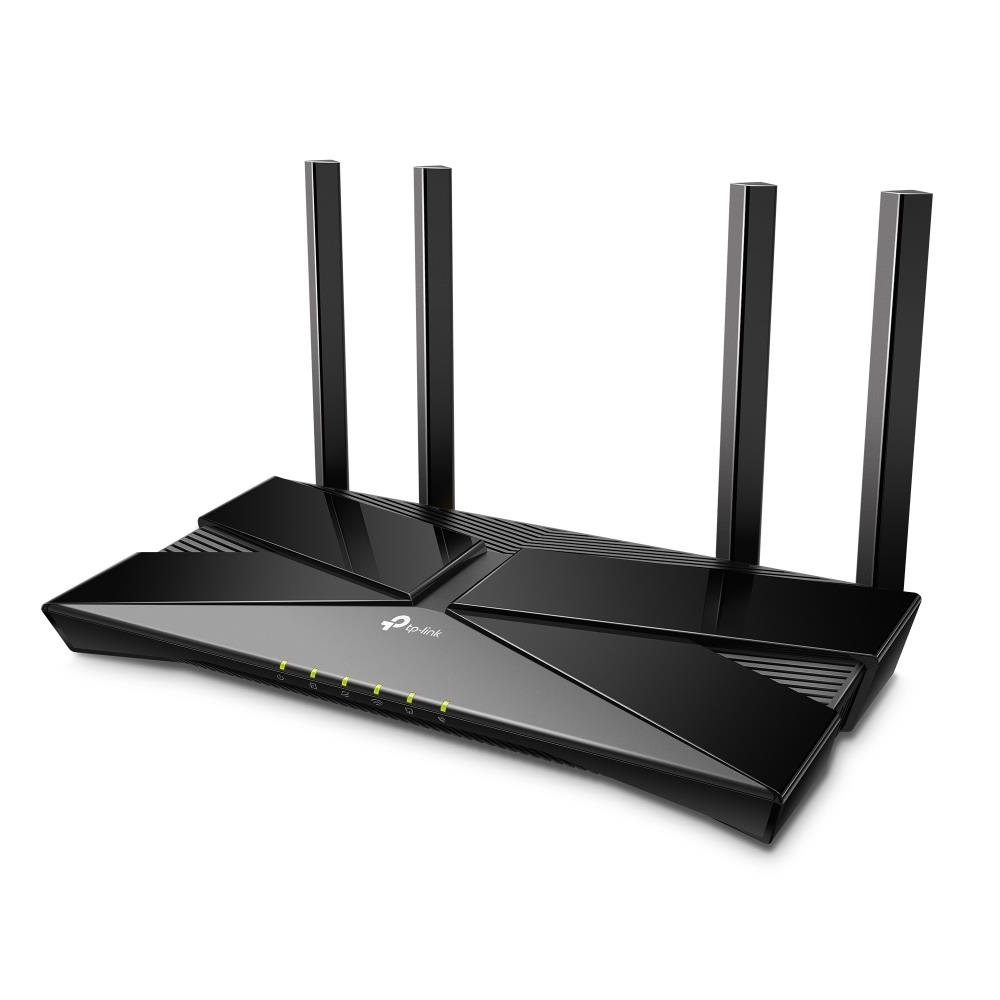

TP-LINK Archer VX1800v AX1800 Dual Band Modem Router (46358)

0.0
Marka : TP-LINK
Fiyat : 4.268,03 TL(KDV Dahil)
Toplam Stok Adedi : 0
DONANIM ÖZELLİKLERİ

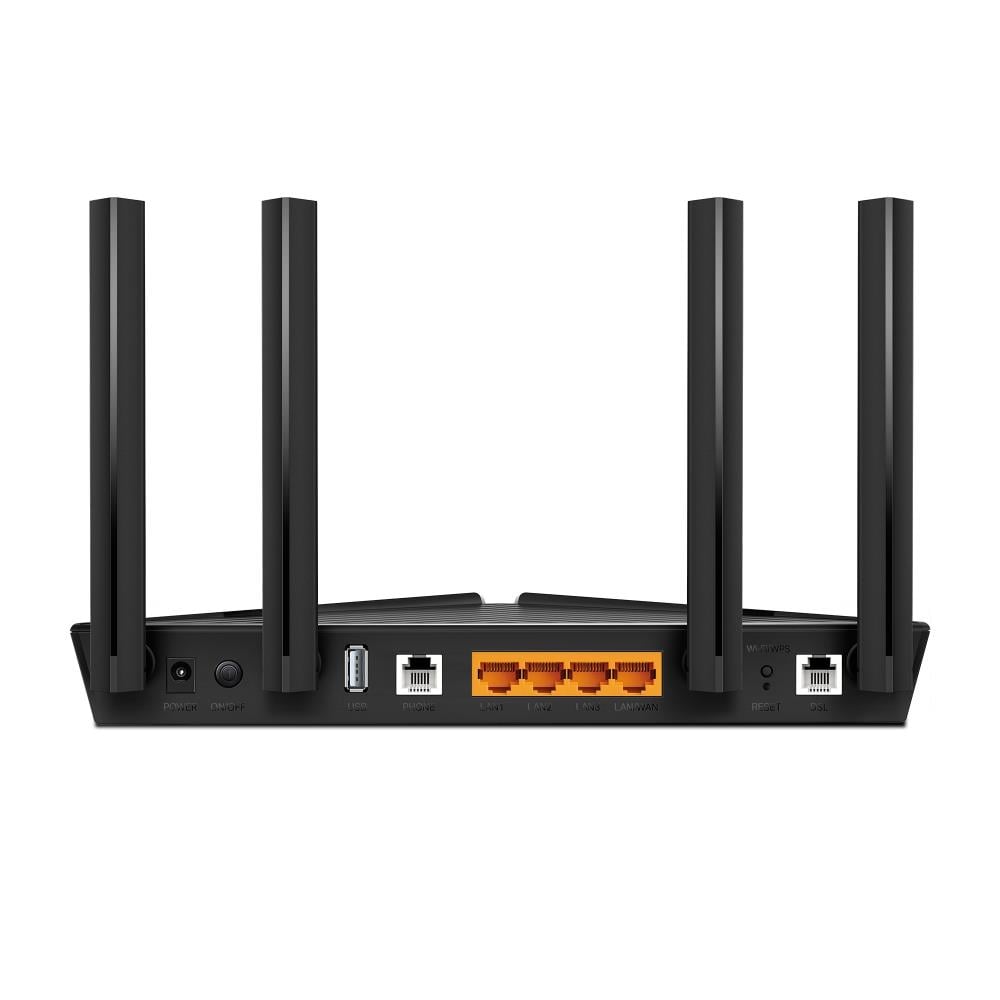

Arabirim1× Gigabit WAN/LAN,
3× Gigabit LAN,
1× USB 2.0,
2× RJ11 (1× DSL + 1× FXS)
Harici Güç Kaynağı12V / 1.5A
IEEE StandartlarıIEEE 802.3, IEEE 802.3u, 802.3ab
VDSL2 StandartlarıITU-T G.993.2, ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP)
ADSL StandartlarıFull-rate-ANSI T1.413 Issue 2, ITU-T G.992.1 (G.DMT), ITU-TG.992.2 (G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.11
ADSL2 StandartlarıITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis)
ADSL2+ StandartlarıITU-T G.992.5(Annex A/L/M)
Boyutlar ( W X D X H )260.2 × 135.0 × 41.6 mm
Anten4× External Antennas
KABLOSUZ ÖZELLİKLERİ
Kablosuz StandartlarIEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
Kablosuz Hızı1201 Mbps at 5 GHz, 574 Mbps at 2.4 GHz
Frekans2.4 GHz and 5 GHz
Kablosuz FonksiyonlarEnable/Disable Wireless Radio, WMM
Kablosuz GüvenlikWPA2-PSK, WPA2-PSK/WPA-PSK, WPA3-Personal, WPA3-Personal/WPA2-PSK, WPA2-Enterprise, WPA/WPA2-Enterprise encryptions
İletim GücüCE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)
Kablosuz TakvimSupports 2.4 GHz and 5 GHz Wireless Schedule
VoIP ÖZELLİKLERİ
VoIP StandartlarıSIP(RFC3261)/RTP(RFC1889/3550), G.711A/u, G.722, G.729AB, G.726
Integrated Answering MachineStores long voice messages internally on the modem router or store voice messages externally on USB storage devices
Advanced Telephone FunctionsCall Forwarding, Call Transfer, Call Back on Busy, Call Blocking, Anonymous Call Blocks, Speed Dial, Emergency Number
YAZILIM ÖZELLİKLERİ
Gelişmiş ÖzelliklerIPTV, Parental Controls, Network Address Translation (NAT), Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional), DNS Relay, DDNS, IGMP V1/V2/V3
GüvenlikNAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding
Çalışma ModlarıVDSL/ADSL Modem Router, 3/4G Router, Wireless Router
YönetimAccess Control, Local Management, Remote Management
DHCPServer, DHCP Client List, Address Reservation
Port YönlendirmePort Forwarding, Port Triggering, UPnP, DMZ
Dinamik DNSDynDns, NO-IP, TP-Link
VPNOpenVPN, PPTP VPN, IPSec VPN
ProtokollerSupport IPv4 and IPv6
ATM/PPP ProtokolleriATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
USB PaylaşımSupport Samba (Storage) / FTP Server / Media Server / 3G/4G Modem / SFTP Server / Web Storage
Misafir Ağ2.4 GHz guest network, 5 GHz guest network
IPSec VPNSupport up to 10 IPSec VPN tunnels
OTHER
Network Services Enabled by DefaultWeb Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
DNS
• Port: 53 Protocol: TCP
App management
Manage and configure device through app
• Port: 22 Protocol: TCP
• Port: 20002 Protocol: TCP
CWMP
CPE WAN Management Protocol
• Port: 7553 Protocol: TCP
DİĞERLERİ
SertifikaCE, RoHS
Paket İçeriğiWi-Fi 6 VDSL/ADSL Modem Router Archer VX1800v
External Splitter
RJ11 DSL Cable
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
Sistem GereksinimleriInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or
other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
OrtamOperating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~60? (-40? ~140?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
