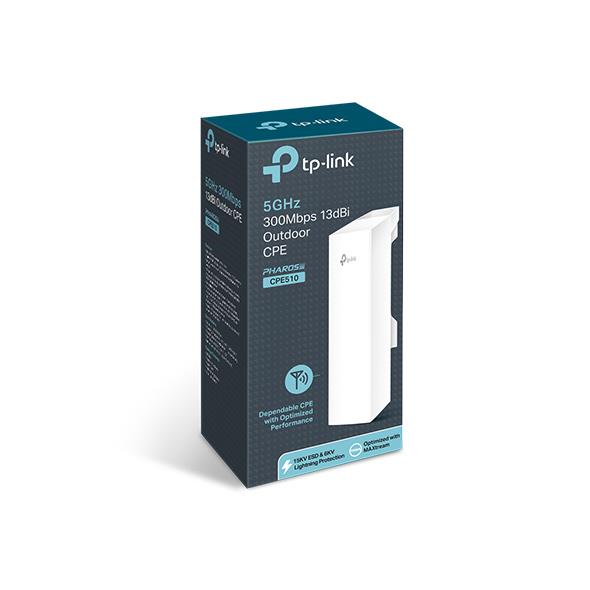

TP-LINK CPE510 13dbi 300mbps 5ghz 15km Harici Access Point
TP-LINK CPE510 13dbi 300mbps 5ghz 15km Harici Access Point
TP-LINK CPE510 13dbi 300mbps 5ghz 15km Harici Access Point
TP-LINK CPE510 13dbi 300mbps 5ghz 15km Harici Access Point
TP-LINK CPE510 13dbi 300mbps 5ghz 15km Harici Access Point

TP-LINK CPE510 13dbi 300mbps 5ghz 15km Harici Access Point (10269)

0.0
Marka : TP-LINK
Fiyat : 2.820,01 TL(KDV Dahil)
Toplam Stok Adedi : 2
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver

CPE510

5GHz 300Mbps 13dBi Dış Mekan CPE

  • Yerleşik 13dBi 2x2 çift polarizasyonlu yönlü MIMO anteni
  • 0 ile 23dBm/200mw arasında ayarlanabilir iletim gücü
  • 15km üzerinde kapsama alanlı kablosuz ağ iletimi için sistem düzeyinde optimizasyon
  • Ürün performansını, kapasitesini ve gecikme süresi performansını yükselten, PTMP uygulamaları için ideal TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access; Zaman Bölmeli Çoklu Erişim) teknolojisi
  • Merkezi Yönetim Sistemi – Pharos Control
  • AP / Client / AP Router / AP Client Router (WISP) çalışma modları
  • 60 metreye (200 feet) kadar Ethernet Üzerinden Güç uygulamasını destekleyen ve cihazın uzaktan sıfırlanmasına olanak veren Pasif PoE Adaptörü



Kolay kurulum için buraya tıklayınız!
www.kolaykurulum.net





DONANIM ÖZELLİKLERİ
İşlemciQualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc
Bellek64MB DDR2 RAM, 8MB Flash
Arabirim1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 Grounding Terminal
1 Reset Button
Güç KaynağıPassive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Güç Tüketimi10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Boyutlar ( W X D X H )224 x 79 x 60 mm
AntenBuilt-in 13dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 45° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet
Koruma15KV ESD Protection
6000V Lightning Protection
MuhafazaOutdoor ASA stabilized plastic material
IPX5 waterproof Certification
KABLOSUZ ÖZELLİKLERİ
Kablosuz StandartlarIEEE 802.11a/n (with Pharos MAXtream disabled)
Tescilli ProtokolTDMA Mode (with Pharos MAXtream enabled)
Kablosuz HızıUp to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frekans5.15~5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
İletim Gücü23dBm/200mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
YAZILIM ÖZELLİKLERİ
Kablosuz KonfigürasyonlarPharos MAXtream TDMA Technology
802.11a/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
YönetimDiscovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
Sistem AraçlarıWireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Sistem Düzeyindeki OptimizasyonlarOptimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog
POE ADAPTÖR ÖZELLİKLERİ
Boyutlar (H X W X D)110*57*33.5mm
Arayüzler1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)
ButonRemote Reset Button
Güç Durum LEDleriGreen

Giriş100-240VAC, 50/60Hz
Çıkış24VDC, 1A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Verimlilik>80%
SertifikalarCE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
DİĞERLERİ
SertifikaCE, FCC, RoHS, IPX5
Paket İçeriğiOutdoor Wireless CPE
24V 1A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
Sistem GereksinimleriMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
OrtamOperating Temperature: -30°C~70°C (-22?~158?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

Ek sürüm bilgisi için lütfen destek sayfasına gidin.
