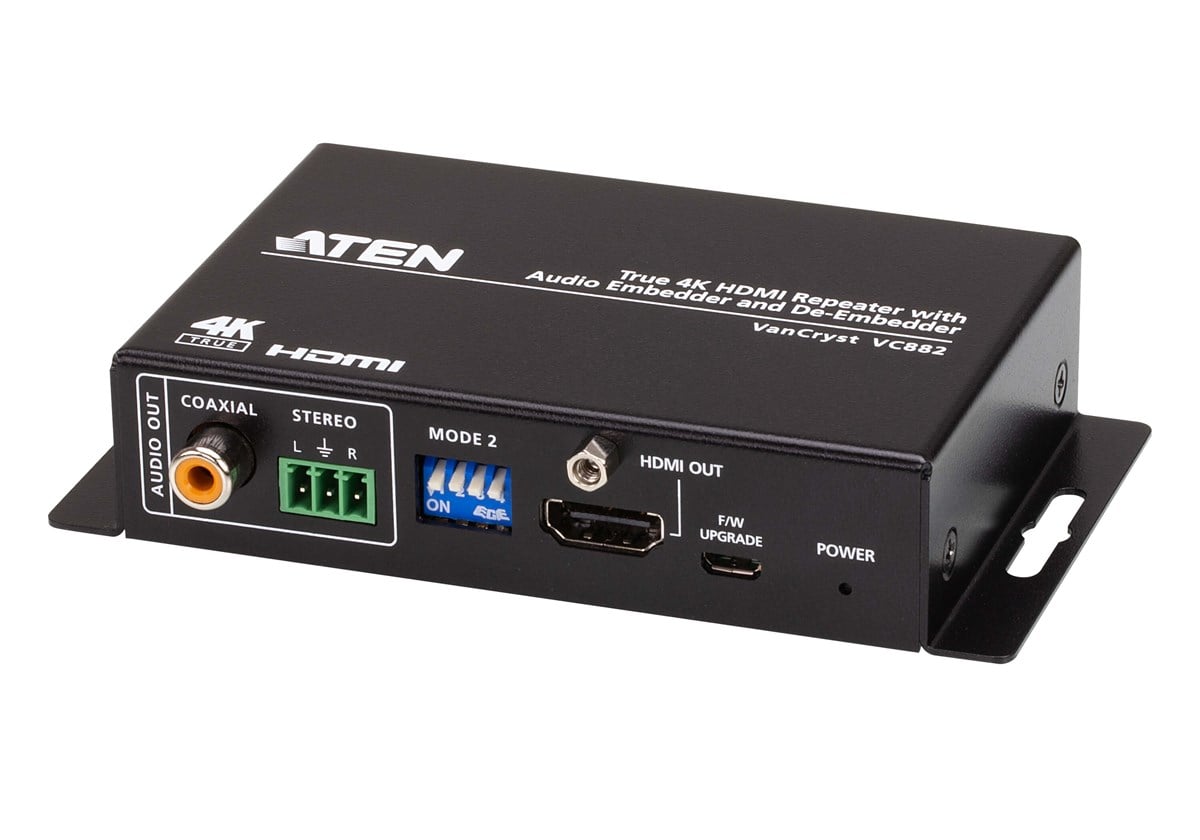

True 4K HDMI Repeater with Audio Embedder and De-Embedder

True 4K HDMI Repeater with Audio Embedder and De-Embedder (ATEN-VC882)

0.0
Marka : Aten
Fiyat : 9.102,24 TL(KDV Dahil)
Toplam Stok Adedi : 0
True 4K HDMI Repeater with Audio Embedder and De-Embedder
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver

  • Embeds audio to the HDMI output or de−embeds audio from the HDMI signal and outputs the extracted signal through an alternative audio system
  • Easy embedding / de-embedding mode selection via 2 / 4-pin DIP switches
  • HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant
  • True 4K video quality – supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
  • Supports True 4K / HDR formats – HDR10, HDR10+, Dolby Vision and Hybrid Log-Gamma (HLG)
  • Supports HDMI audio formats – LPCM 2.0, Dolby Digital 2.0, Dolby Digital 5.1 and DTS Digital 5.1
  • Compact, portable metal enclosure designed for HDMI Lock-pro
  • Firmware upgradable



LEDs
Power LED (blue) x1
Reset Button Push button x1 (to activate mode configuration)
Switches
Mode Selection MODE 1 (2-PIN)
PIN#1 (Enable / Disable Audio Embedder Function)
PIN#2 (Audio embed from Coaxial / Stereo)

MODE 2 (4-PIN)
PIN#1 (Enable / Disable Audio Extractor Function)
PIN#2 (Enable / Disable ARC function)
PIN#3&4 (EDID mode selection: Bypass, 5.1 CH, 2 CH, Learn)
Video Input
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 5 meters
Video Output
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 5 meters
Video
Max. Data Rate 18 Gps
Max. Pixel Clock 600 MHz
Compliance HDMI 2.0 (3D, Deep Color)
HDCP 2.2
Max. Resolution 4096 X 2160@60Hz(4:4:4) 8 bit
Audio
Output Coaxial x1
Format: LPCM2.0, Dolby Digital 2.0, Dolby Digital 5.1, DTS Digital 5.1
3-pin terminal block x 1
Format: Analog, stereo, unbalanced, LPCM2.0
Input Coaxial x1
Format: LPCM2.0, Dolby Digital 2.0, Dolby Digital 5.1, DTS Digital 5.1
3-pin terminal block x 1
Format: Analog, stereo, unbalanced, LPCM2.0
Connectors
Power 1 x DC Jack, 5V 1A, Lockable
Firmware Upgrade 1 x Micro USB
Power Consumption DC5V:2.905W:9.92BTU
Environmental
Operating Temperature 0 - 40 ºC
Storage Temperature -20 - 60 ºC
Humidity 0 - 80% RH,  Non-Condensing
Physical Properties
Housing Metal
Weight 0.24 kg ( 0.53 lb )
Dimensions (L x W x H) 12.22 x 8.22 x 2.50 cm
(4.81 x 3.24 x 0.98 in.)
