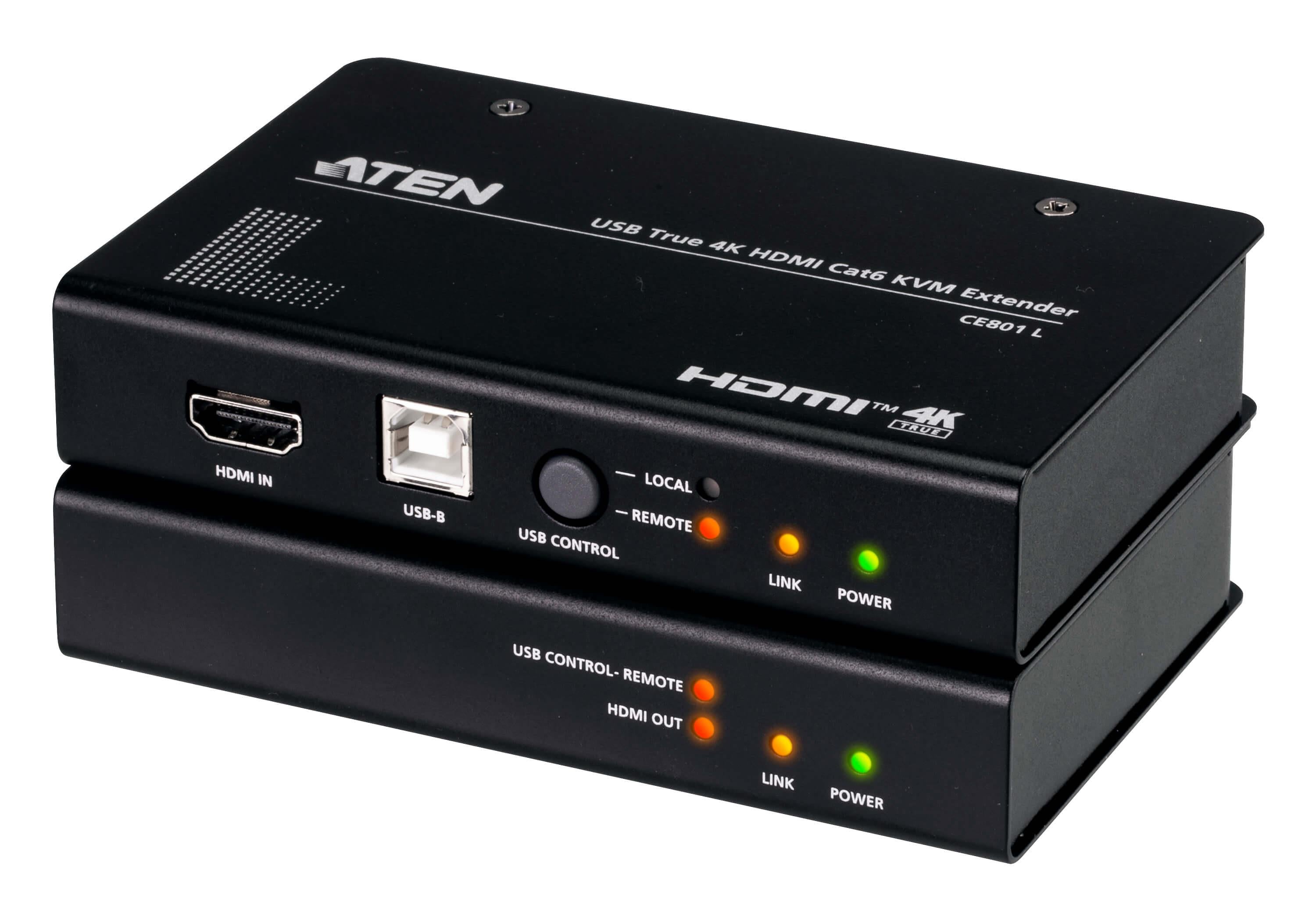

USB True 4K HDMI Cat 6 KVM Extender (4K @ 70 m)

USB True 4K HDMI Cat 6 KVM Extender (4K @ 70 m) (ATEN-CE801)

0.0
Marka : Aten
Fiyat : 14.676,48 TL(KDV Dahil)
Toplam Stok Adedi : 0
USB True 4K HDMI Cat 6 KVM Extender (4K @ 70 m)
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
  • Extends HDMI video, USB keyboard/mouse control, embedded audio, and RS-232 control signals across 70 m over a Cat 6 cable
  • Long reach mode – 1080p extension up to 100 m
  • Supports resolutions up to 3840 x 2160 @ 60 Hz (4:4:4) with HDCP 2.2 / 2.3 compliance
  • Dual console USB keyboard / mouse operation - control privilege between the remote and local units switchable via USB control mode pushbutton
  • Supports HDR 10 for enhanced video quality
  • Supports wide screen format
  • Supports digital audio formats such as 7.1ch Dolby and DTS audio
  • Plug-and-play with no software or driver required
  • Built-in 8KV/15KV ESD protection
  • Rack-mountable
  • DC Jack with screw-lock ensures stable and secure connection



Function CE801L CE801R
Connectors
Console Ports 1 x HDMI Female (Black)
2 x USB Type A Female (White)*

* For Keyboard & Mouse only		 1 x HDMI Female (Black)
2 x USB Type A Female (White)*

* For Keyboard & Mouse only
KVM Ports 1 x HDMI (Female, Black)
1 x USB Type B (Female, White)		 N/A
RS-232 1 x DB-9 Female (Black) 1 x DB-9 Male (Black)
Power 1 x DC Jack with locking 1 x DC Jack with locking
Unit To Unit 1 x RJ-45 Female (Black) 1 x RJ-45 Female (Black)
Video
Compliance HDMI (4K/60Hz); 4K HDR
HDCP2.3 Compatible		 HDMI (4K/60Hz); 4K HDR
HDCP2.3 Compatible
Max. Resolution 3840 x 2160 @ 60Hz (4:4:4) 3840 x 2160 @ 60Hz (4:4:4)
Max. Resolutions / Distance 4K x 2K @ 60Hz (4:4:4) up to 70m (Cat 6/6a /ATEN 2L-29330 Cat 6 cable)
1920 x 1080 @ 60Hz (4:4:4) up to 100m (Cat 6/6a/ATEN 2L-29330 Cat 6 cable with Long reach mode enabled )		 4K x 2K @ 60Hz (4:4:4) up to 70m (Cat 6/6a/ATEN 2L-29330 Cat 6 cable)
1920 x 1080 @ 60Hz (4:4:4) up to 100m (Cat 6/6a/ATEN 2L-29330 Cat 6 cable with Long reach mode enabled )
LEDs
Power 1 (Green) 1 (Green)
Link 1 (Orange) 1 (Orange)
Video N/A 1 (Orange)
Console Status 2 (Orange) 1 (Orange)
Switches
DIP 1 x 2 pin N/A
Pushbuttons
Operating Mode Selection 1 x Pushbutton N/A
Power Consumption DC5V:2.59W:28BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.		 DC5V:1.88W:13BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0-40˚C 0-40˚C
Storage Temperature -20-60˚C -20-60˚C
Humidity 0-80% RH, Non-condensing 0-80% RH, Non-condensing
Physical Properties
Housing Metal Metal
Weight 0.32 kg ( 0.7 lb ) 0.31 kg ( 0.68 lb )
Dimensions (L x W x H) 12.80 x 8.21 x 2.50 cm
(5.04 x 3.23 x 0.98 in.)		 12.80 x 8.15 x 2.50 cm
(5.04 x 3.21 x 0.98 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Remote HDMI out 640  x  480 @ 60/67/72/75 Hz 1600 x 1200 @ 60 Hz
640  x  480 60 Hz (4:3) 1680 x 1050 @ 60 Hz
480p 60 Hz (4:3)/(16:9) 1920 x 1080 @ 60 Hz
576p 50 Hz (4:3)/(16:9) 720p 50/60 Hz
800  x  600 @ 56/60/72/75 Hz 1080i 50/60 Hz
1024  x  768 @ 60/70/75 Hz 1080p 24/25/30/50/60 Hz
1280  x  800 @ 60 Hz 1080p 60 Hz
1280  x  1024 @ 60/75 Hz 3840 x 2160p 24/25/30 Hz
1400  x  1050 @ 60 Hz 3840 x 2160p 50/60 Hz 4:2:0
1440  x  900 @ 60 Hz
